CAT6 UTP/FTP/SFTP Solid Cable/LAN Cable/Network Cable

CAT6 UTP/FTP/SFTP Solid Cable/LAN Cable/Network Cable

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T, Western Union

Product Description

We are specialized in producing LAN cable, patch panel, keystone jack, patch cord, cable management, modular plug, faceplate, network cabinet,PDU and much more since 2000

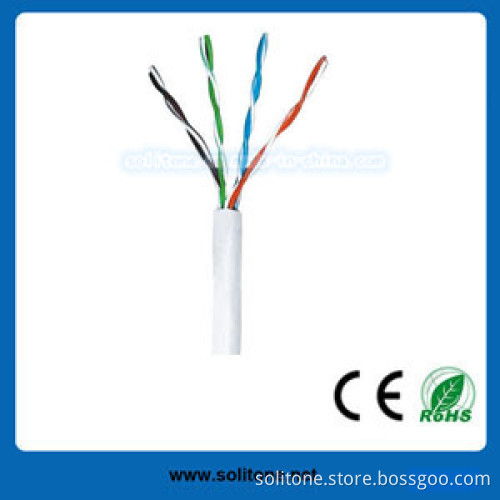

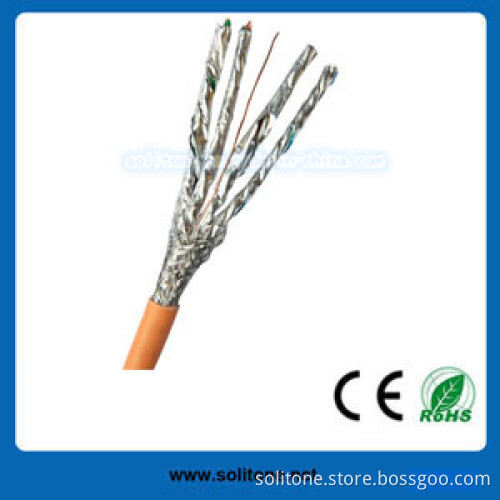

Shielded/Unshielded LAN Cable (CAT7/CAT6A/CAT6/CAT5E/CAT3)
1. All of products we offer are top quality and competitive price;

2. If there is no special explanation, all of our Brand are SOLITONE or OEM;
3. Payment: We accept T/T and L/C and Western Union ;
4. Packing:
1) Packing Lengths: 305m/roll, or other lengths available according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull box.
4) Other packing available according to client's request.
5. Any question, Please contact us in first time. We'll reply as soon as possible.

Cable Data
Category	CAT6 UTP
Conductor	Copper/CCA/CCS
AWG	23
Conductor Dia(mm)	0.57
Insulation	PE
Average thickness(±0.03mm)	0.22
Min point thickness	0.18
Insulation Dia (±0.03mm)	1.02
Twisting lay length(mm)	30 undemeath
Cabling lay length(mm)	200 undemeath
Jacket	PVC
Outer Dia (±1.0mm)	6.0
Rip cord	Yes
Weight Nom (kg/km)	42

Typical Cable Performance
Frequency (MHz)	Ruturn loss (dB)	Attenuation (dB/100m)	Next (dB)	ACR (dB)	PSNEXT (dB/100m)	ELEFXT (dB/100m)	PSELEXT (dB/100m)	Delay (ns/100m)
0.772	9.4	1.8	76.0	74.0	74.0	70.0	67.0	575.0
1.0	20.3	2.0	74.3	72.0	72.3	67.8	64.8	570.0
4.0	23.0	3.8	65.5	61.0	63.3	55.8	52.8	552.0
8.0	24.5	5.3	60.8	55.0	58.3	49.7	46.7	546.0
10.0	25.0	6.0	59.3	53.0	57.3	47.8	44.8	545.4
16.0	25.0	7.6	56.2	49.0	54.2	43.7	40.7	543.0
20.0	25.0	8.5	54.8	46.0	52.8	41.8	38.8	542.0
25.0	24.3	9.5	53.3	44.0	51.3	39.8	36.8	541.0
31.3	23.6	10.7	51.9	41.0	49.9	37.9	34.9	540.0
62.5	21.5	15.4	47.4	32.0	45.4	31.9	28.9	538.6
100.0	20.1	19.8	44.3	24.5	42.3	27.3	24.8	537.6
200.0	18.0	29.0	39.8	10.8	37.8	21.8	18.8	536.5
250.0	17.3	32.8	38.3	5.5	36.3	19.8	16.8	536.3
