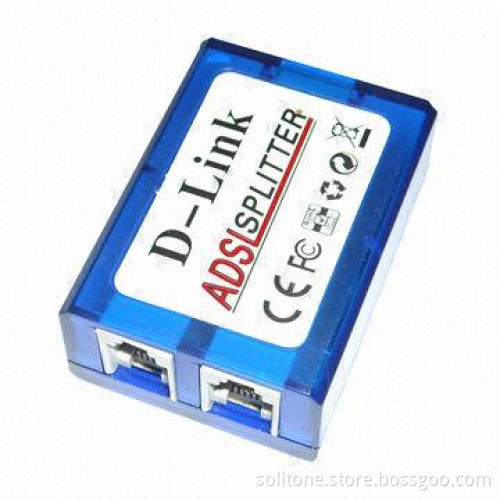

DSL Splitter for RJ11/RJ45

Get Latest Price

Payment Type:: T/T, Western Union or L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union or L/C at Sight

Product Description

Used for isolating voice signal and ADSL digital signal from telephone signal, it can protect the voice signal and ADSL digital signal from the interference of a telephone and a fax machine

POTS -3dB, cut off frequency: 7/8kHz

POTS pass ripple loss: (20Hz to 4kHz) ±0.5dB

Attenuation:

30-300kHz: ≥65dB
30-1104kHz: ≥55dB

DC resistance each line: 12.5Ω (maximum)

Insertion loss (200Hz to 4kHz): -0.5dB (maximum)

Return loss:

300-500Hz: ≥16dB
500-2000Hz: ≥18dB
2000-2400Hz: ≥18dB

Longitudinal balance (CMRR):

200Hz-1kHz: -58dB (minimum)
3kHz: -53dB (minimum)

POTS loop current: 100mA DC

Envelope delay distortion (0. 2 to 4. 0kHz): 100usec (maximum)

Impedance (300Hz to 3. 4kHz): 600Ω

Hi-Pot test: tip to ring, 250V DC/1mA 2 seconds

30-300kHz: ≥65dB

30-1104kHz: ≥55dB

300-500Hz: ≥16dB

500-2000Hz: ≥18dB

2000-2400Hz: ≥18dB

200Hz-1kHz: -58dB (minimum)

3kHz: -53dB (minimum)
