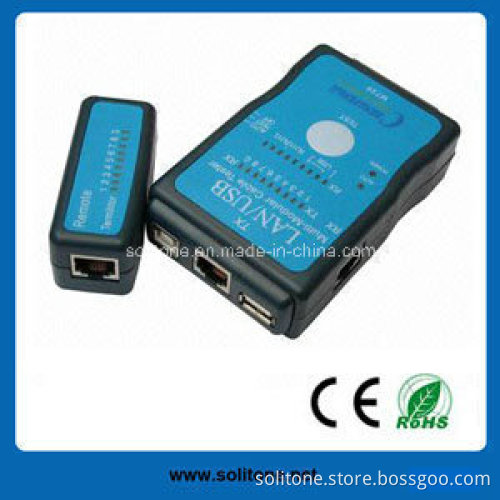

LAN Cable Tester (ST-CTM726)

We are specialized in producing LAN cable, patch panel, keystone jack, patch cord, cable management, modular plug, cable tester, faceplate, network cabinet, PDU and much more since 2000

Features
1. Tests corresponding double twisted cables: 1, 2, 3, 4, 5, 6, 7, 8 and G
2. Judges wrong connection, short-circuit and open-circuit
3. Cable tester with AM to BM, AM to AM and RJ45 to RJ45

Specifications
1. This device is designed to easily read the correct cable pin out configuration
2. Can be separated out into two units, one main and one remote unit
3. Can accurately test the following cables: USB (A/A), USB (A/B), 10Base-T, 100Base-TX, 1000Base-TX, 4. Token Ring, AT&T 258A, EIA/TIA568A/568B and RJ11/RJ12 BNC, RCA, modular cables
5. This device is compact and lightweight, an essential requirement for home use and for outside
6. The remote unit allows you to test cables installed far away with the auto-test mode and with the easy to read 9 LED indicators for testing each pin
7. Powered by 9V battery (note: Battery is not included)
8. Dimensions: 5.5 x 2.75 x 1.25 inches (14 x 7 x 3.2cm)
9. Weight: 106g (3.7oz)
