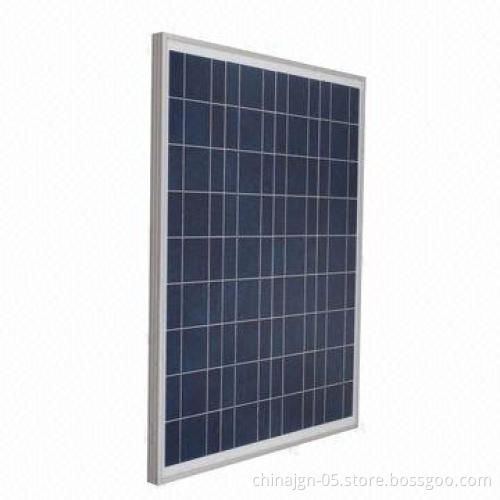

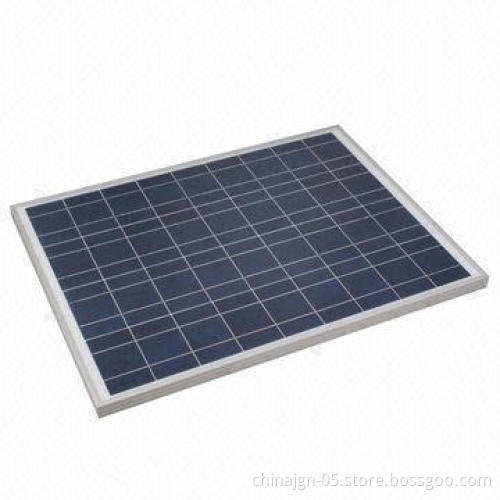

80W/18V Poly Solar Panels, Used for Solar Street Light, Measures 670x820x35mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Description:

Solar cell efficiency: 16%
Under standard test conditions: irradiance of1000W/m², Am1.5 and 25°C cell temperature

Mechanical characteristics:

Electrical characteristics:

Module warranty:

Solar cell efficiency: 16%

Under standard test conditions: irradiance of1000W/m², Am1.5 and 25°C cell temperature

Dimensions: (W)670x(L)820x(H)35mm

Weight: 8.2kg

Solar cells: polycrystalline, 36 cells

Constructions:

Front: high transmission 3.2mm tempered glass

Encapsulate: EVA

Back: TPT

Frame: clear anodized aluminum alloy

Color: silver

Maximum power (Pmax): 80W ±5%

Maximum power voltage (Vmp): 17.21V ±3%

Maximum power current (Imp): 4.65A ±3%

Short-circuit current (Isc): 5.11A ±3%

Open-circuit voltage (Voc): 21.05V ±3%

Current temperature coefficient: 0.08%/°C

Voltage temperature coefficient: -0.32%/°C

Power temperature coefficient: -0.38%/°C

Maximum system voltage: 1000V

25-year limited warranty of 80% power output

10-year limited warranty of 90% power output

5-year limited warranty of materials and workmanship
