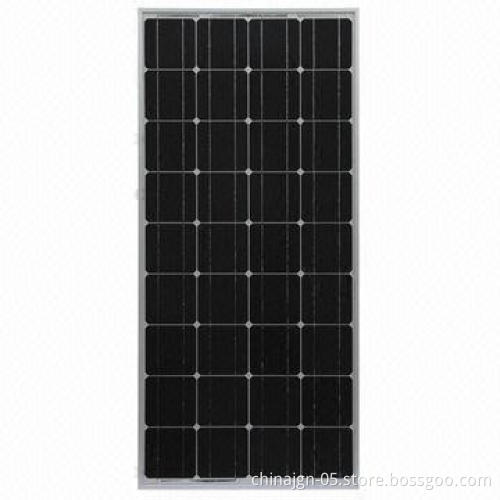

80W/18V Mono Solar Panels, Used for Solar Street Light, Measures 670x820x35mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Quality endurance:

Strong, lightweight aluminum frame design with reinforcedsealing, load hold to prevent freezing and warping and standagainst high wind

Under standard test conditions (STC): irradiance of1000W/m², Am1.5 and 25°C cell temperature

Operating temperature: -40 to +85°C

Storage temperature: -40 to +85°C

Mechanical characteristics:

Dimensions: (L)670x(W)820x(H)35mm
Weight: 8.4kg
Solar cells: monocrystalline 125x125 solar cells, 36 cells in4x9 matrix connected in series

Module warranty: 25-year limited of 80% power output, 10-yearlimited of 90% power output, 5-year limited of materials andworkmanship

Performance:

Electrical characteristics:

Current temperature coefficient: 0.031%/°C

Voltage temperature coefficient: - 0.31%/°C

Power temperature coefficient: -0.42%/°C

Maximum system voltage: 1000V

Good A grade solar cell from sunpower solar

Good backsheet from SFC, 3m

EVA from bridgestone/first

Certifications: UL and TUV

Protection grade: IP65

High transmission low iron tempered glass

Solar panels with TUV, CE, certified

Dimensions: (L)670x(W)820x(H)35mm

Weight: 8.4kg

Solar cells: monocrystalline 125x125 solar cells, 36 cells in4x9 matrix connected in series

Rated power (Pmax): 80W

Power tolerance: ±3%

Nominal voltage: 18V

Design life: 25 years

Maximum power (Pmax): 80W, ±3%

Maximum power voltage (Vmp): 18V, ±3%

Maximum power current (Imp): 4.44A, ±3%

Short-circuit current (Isc): 5.07A, ±3%

Open-circuit voltage (Voc): 21.6V, ±3%
