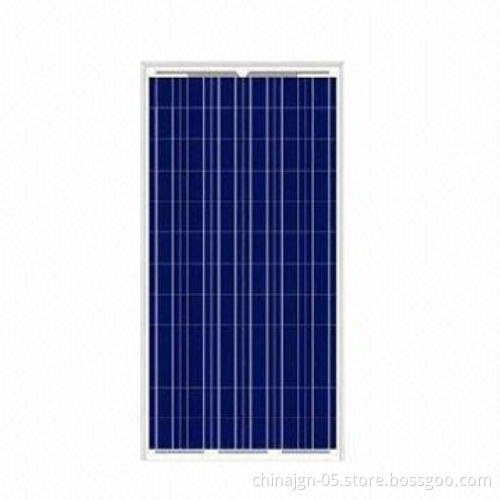

Polycrystalline Solar Panel, 275-300W, 23.0kg Weight

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Model number: JGN-275W-300W

Maximum power: 275/280/285W

Optimum operating current (Imp): 7.67/7.75/7.86A

Optimum power voltage (Vmp): 35.85/36.14/36.28V

Short circuit current (Isc): 8.43/8.51/8.63A

Open circuit voltage (Voc): 43.72/44.07/44.24V

Maximum power: 290/295/300W

Optimum operating current (Imp): 7.90/8.00/8.08A

Optimum power voltage (Vmp): 36.72/36.86/37.15V

Short circuit current (Isc): 8.68/8.79/8.87A

Open circuit voltage (Voc): 44.78/44.95/45.30V

Solar panel: 275/280/285/290/295/300W

Specifications:

Features:

High-efficiency solar cell ensures high performance of solarmodule and creates more power in peak hours
Anti-reflecting coating and high-transmission rate glassincreases the power output and mechanical strength of solarmodule
Aluminum frame
Torsion- and corrosion-resistant anodized frame ensuresdependable performance, even through harsh weather conditions
Lightweight and pre-drilled mounting holes for easyinstallation
Water-resistant junction box
Designed specially to meet customers demands for residential,commercial and industrial use

Material: polycrystalline solar silicone cells

Peak power: 275/280/285/290/295/300W

Power output tolerance: ± 5%

Cell size: 156 x 156mm

Cells in series: 6 x 12 (72 pieces)

Module dimensions: 1,956 x 992 x 50mm

Weight: 23.0kg

High-efficiency solar cell ensures high performance of solarmodule and creates more power in peak hours

Anti-reflecting coating and high-transmission rate glassincreases the power output and mechanical strength of solarmodule

Aluminum frame

Torsion- and corrosion-resistant anodized frame ensuresdependable performance, even through harsh weather conditions

Lightweight and pre-drilled mounting holes for easyinstallation
