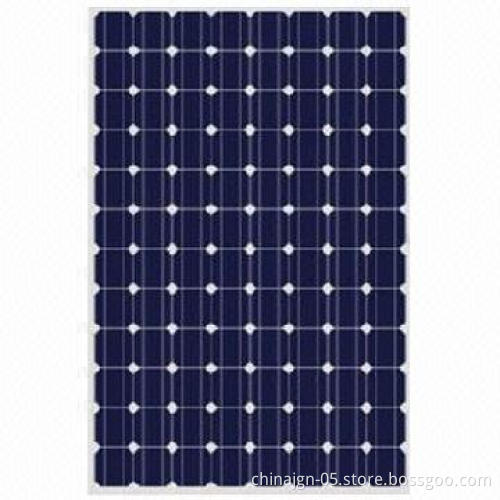

Solar Panel with 240W Maximum Power, Mono

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Model number: JGN- 240W

Size: 125 x 125mm

Maximum power: 240W

Open circuit voltage: 59.52V

Short circuit current: 5.15A

Maximum power voltage: 49.92V

Maximum power current: 4.81A

Cell efficiency: 16.75%

Maximum system voltage: 1000V DC

Temperature coefficient of Vm: -0.241%/K

Temperature coefficient of Im: 0.033%/K

Temperature coefficient of power: -0.37%/K

Maximum series fuse rating: 13A

Solar cell and configuration: 8 x 12 matrix connected in series, solar cell (125 x 125mm)

Junction box: IP65, 1000V DC, TUV certified, 4pcs by-pass diodes

Cable type: cable cross section size 4mm², TUV certified, 0.9m length

Encapsulation: low iron tempered glass, 3.2mm thickness, light transmission above 91%, TPT and fast cure EVA

Frame: clear anodized aluminum alloy, 50mm thickness, silver

Dimensions (L x W x H): 1,580 x 1,060 x 50mm

Weight: 24kg

Heavy mechanical load: 5400Pa (meet IEC61215)

Hail impact test: Ø25mm ice ball, 23m/s

Operating temperature -40 to +85C

Warranty: 5 years product warranty and 25 years performance guarantee (90% up to 10 years
