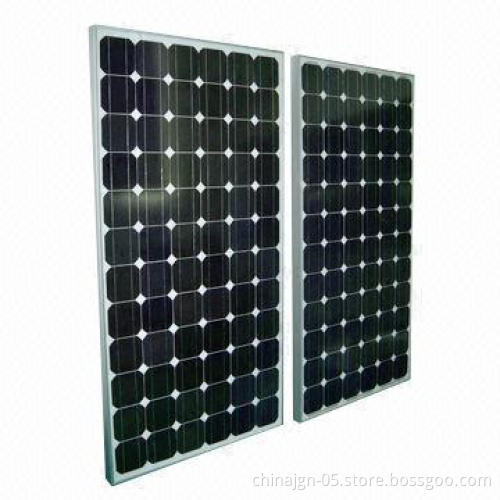

250W Solar Modules for Solar Power System, Voltage Can be 30/36/48V, with IEC61215 Approval
  • 250W Solar Modules for Solar Power System, Voltage Can be 30/36/48V, with IEC61215 Approval
250W Solar Modules for Solar Power System, Voltage Can be 30/36/48V, with IEC61215 Approval

250W Solar Modules for Solar Power System, Voltage Can be 30/36/48V, with IEC61215 Approval

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Features:
    • High conversion efficiency based on innovative photovoltaictechnologies
    • High reliability with guaranteed ±3% power outputtolerance, ensuring return on investment
    • Withdraw high wind-pressure and snow load, and extremetemperature variations
    • Brand name: JGN
    • Material: monocrystalline
    • Dimensions (L x W x H): 1945 x 975 x 50mm
    • Weight: 23kg
    • Maximum power: 250W
    • Optimum power voltage: 36Vmp
    • Optimum operating current: 6.94A
    • Open circuit voltage: 43V
    • Short circuit current: 7.77A
  • Module conversion efficiency:17% to 19%
  • Operating temperature range: -40 to +85°C
  • Voltage temperature coefficient -0.33%
  • Current temperature coefficient: +0.05%
  • Power temperature coefficient: -0.23%
  • Cell: mono-crystalline 156 x 156mm, 125 x 125mm
  • Number of cells: 72 (12 x 6)
  • Weight: 21kg
  • Workmanship: tempered glass laminated
  • Temperature coefficients:
    • Normal operating cell temperature: 45°, ±2
    • Temperature coefficients of Isc (TK Isc): 0.06%
    • Temperature coefficients of Voc (TK Voc): -0.35%
    • Temperature coefficients of Pmax (TK Pmax): -0.48%
  • Standard testing condition AM1.5 1,000W/m² 25
  • Warranty: 2 to 5years quality warranty and 25 yearslifespan
  • Limited performance warranty: 10 years at 90% of the minimalrated power output, 25 years no less than 80%
  • High conversion efficiency based on innovative photovoltaictechnologies
  • High reliability with guaranteed ±3% power outputtolerance, ensuring return on investment
  • Withdraw high wind-pressure and snow load, and extremetemperature variations
  • Brand name: JGN
  • Material: monocrystalline
  • Dimensions (L x W x H): 1945 x 975 x 50mm
  • Weight: 23kg
  • Maximum power: 250W
  • Optimum power voltage: 36Vmp
  • Optimum operating current: 6.94A
  • Open circuit voltage: 43V
  • Short circuit current: 7.77A
  • Normal operating cell temperature: 45°, ±2
  • Temperature coefficients of Isc (TK Isc): 0.06%
  • Temperature coefficients of Voc (TK Voc): -0.35%
  • Temperature coefficients of Pmax (TK Pmax): -0.48%
