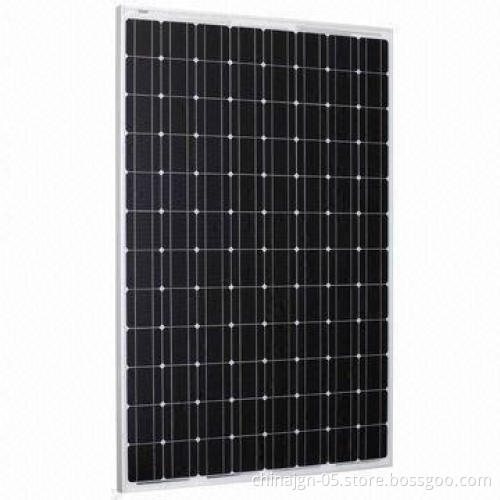

48V/240W Monocrystalline Solar Cells, Used in Solar Power System, CE Certified

48V/240W Monocrystalline Solar Cells, Used in Solar Power System, CE Certified

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Electrical performance:

Maximum power (Pmax): 240W
Output power tolerance: 0 to +3%
Maximum power voltage (Vmp): 48V
Maximum power current (Imp): 5A
Open-circuit voltage (Voc): 57.6V
Short-circuit current (Isc): 5.6A
Cell efficiency: 16.50%
Module efficiency: 14.40%
Certifications: CE and IEC 61215

Thermal characteristics:

Nominal operation cell temperature (NOCT): 45 ±2°C
Temperature coefficient of Pmax: -0.413%/°C
Temperature coefficient of Voc: -0.330%/°C
Temperature coefficient of Isc: 0.065%/°C

Operating conditions:

Maximum system voltage: 1000V
Maximum series fuse rating: 10A
Operating temperature range: -40 to 85°C
Maximum static load, front (snow and wind): 5400Pa
Maximum static load, back (wind): 2400Pa

Construction materials:

Front cover (material, type and thickness): low-iron temperedglass/3.2mm
Cell (quantity, material, type and dimension):96/monocrystalline/125 x 125mm
Encapsuled (material): ethylene vinyl acetate (EVA)
Frame(material, anodization color): anodized aluminumalloy/clear
Junction box (protection ): IP65
Cable (length/cross-sectional area): 900mm/4mm²
Plug connector: MC4 compatible

General characteristics:

Dimensions of module: 1601 x 1061 x 46mm
Weight: 19.5kg

Linear performance warranty:

5 years limited product warranty
25 years linera power warranty: 10 years at 90% of minimalrated power output, 25 years at 80% of minimal rated poweroutput

Maximum power (Pmax): 240W

Output power tolerance: 0 to +3%

Maximum power voltage (Vmp): 48V

Maximum power current (Imp): 5A

Open-circuit voltage (Voc): 57.6V

Short-circuit current (Isc): 5.6A

Cell efficiency: 16.50%

Module efficiency: 14.40%

Certifications: CE and IEC 61215

Nominal operation cell temperature (NOCT): 45 ±2°C

Temperature coefficient of Pmax: -0.413%/°C

Temperature coefficient of Voc: -0.330%/°C

Temperature coefficient of Isc: 0.065%/°C

Maximum system voltage: 1000V

Maximum series fuse rating: 10A

Operating temperature range: -40 to 85°C

Maximum static load, front (snow and wind): 5400Pa

Maximum static load, back (wind): 2400Pa

Front cover (material, type and thickness): low-iron temperedglass/3.2mm

Cell (quantity, material, type and dimension):96/monocrystalline/125 x 125mm

Encapsuled (material): ethylene vinyl acetate (EVA)

Frame(material, anodization color): anodized aluminumalloy/clear

Junction box (protection ): IP65

Cable (length/cross-sectional area): 900mm/4mm²

Plug connector: MC4 compatible

Dimensions of module: 1601 x 1061 x 46mm

Weight: 19.5kg

5 years limited product warranty

25 years linera power warranty: 10 years at 90% of minimalrated power output, 25 years at 80% of minimal rated poweroutput
