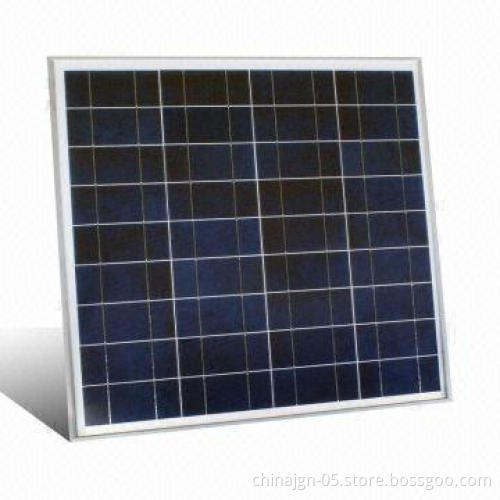

50W Poly Solar Panel, 3.11A Short Circuit Current

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Model type JGN50WP

Peak power (Pmax) 50W

Maximum power voltage (Vmp) 18V

Maximum power current (Imp): 2.77A

Open circuit voltage (Voc): 21V

Short circuit current (Isc): 3.11A

Power tolerance: ±5%

Cell efficiency: 15.9%

Maximum system voltage: 1000V

STC: irradiance 1000W/m², AM1.5 spectrum, moduletemperature 25°C

Temperature coefficients

Current temperature coefficient (Isc): 0.08%/°C

Voltage temperature coefficient (Voc): - 0.32%/°C

Power temperature coefficient (Pmax): -0.38%/°C

Dimensions: 765 x 535 x 35mm

Weight: 5kg

Solar cells: 36 cells in series (4 x 9)

Construction:

Module warranty:

Note: more information for solar panel 50W or other powerssolar panel, mail us please

Specifications are customizable

High-transmission low-iron tempered glass, EVA, TPT

Frame: anodized aluminum is mainly for improving corrosionresistance

Color: silver

25-year limited warranty of 80% power output

10-year limited warranty of 90% power output

5-year limited warranty of materials and workmanship
