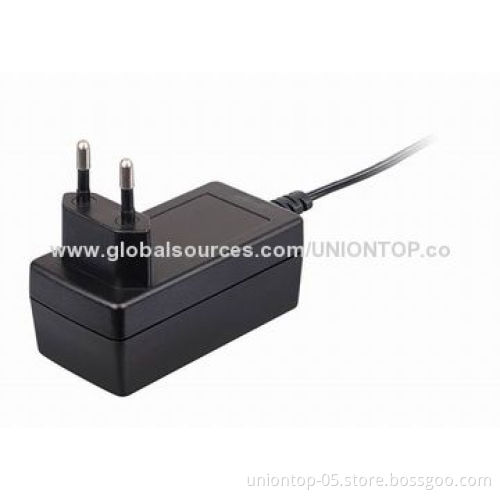

18W universal AC/DC power adapter CE/FCC/UL/CB/LVD/PSE/KC/RoHs certified for table lamp

18W universal AC/DC power adapter CE/FCC/UL/CB/LVD/PSE/KC/RoHs certified for table lamp

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Approved by CE and FCC, CB C-tick PSE KC UL

AC/DC switching power adapter

Input rated voltages: 100-240V AC

Input frequency range: 47-63Hz

Input inrush current: 0.3A maximum

Efficiency: 85% (minimum) at rated voltage

Output: 12V 1.5A

Output power: 18W

Ripple and noise: <120MV at full road with 20MHz bandwidth

Turn on delay time: <3S (AC 110V and full load)

Safety protection: over voltage and current protection for power adapter

Leakage current: <5mA

DC cable length: 1.5 meters

Operating temperatures: 0-60 deg. C

Storage temperatures: -20-85 deg. C

Certificate: CE, FCC

Safety standard: N60950-1, UL60950-1, ESD (EN61000 3-3), CAS (60950 ITE/TE), FCC part 15 subpart B Class B, AN/NZS CISPR 22:2006

1-year warranty

It can fit to UK, US and European market, and can be used by Bluetooth device, CCTV camera, and LCD monitor, mobile phone, POS machine, laptop AC adapter and more

Power adapter, fixed frequency control circuit, apply to scanner, digital camera, instruments, printer and more

Meet all related safety standard

Ultra low no-load/standby power consumption, meet CEC IV green power requirements

Input voltage: 100 to 240V AC (Line: 90 to 264V AC)

Input current: 1.6A Max.

Frequency: 50/60Hz(Range:47~63Hz)

Output: 12V DC 1500mA

No-load power consumption: 0.5W Max.

Efficiency: 70% Min.

Ripples & noises: 80mV to 240mV

Line regulation: ±1%

Load regulation: ±5%

Output protections:

Short-circuit protection
Over voltage protection
Over current protection

Small orders accepted

Customized designs are welcome

OEM orders are also accepted

Short-circuit protection

Over voltage protection

Over current protection
