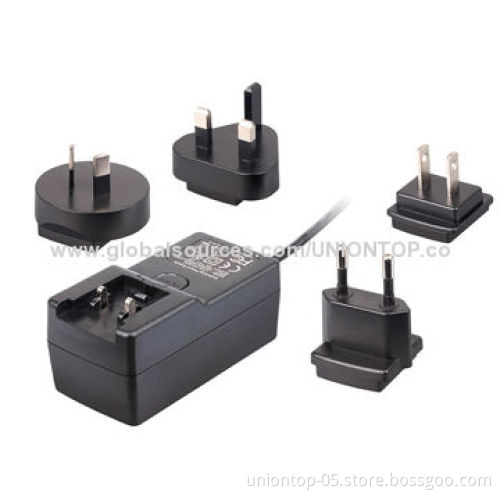

18W Interchangeable Wall-mount Switching Power Supplier for Worldwide Use
  • 18W Interchangeable Wall-mount Switching Power Supplier for Worldwide Use
  • 18W Interchangeable Wall-mount Switching Power Supplier for Worldwide Use
  • 18W Interchangeable Wall-mount Switching Power Supplier for Worldwide Use
  • 18W Interchangeable Wall-mount Switching Power Supplier for Worldwide Use
  • 18W Interchangeable Wall-mount Switching Power Supplier for Worldwide Use
  • 18W Interchangeable Wall-mount Switching Power Supplier for Worldwide Use
18W Interchangeable Wall-mount Switching Power Supplier for Worldwide Use
18W Interchangeable Wall-mount Switching Power Supplier for Worldwide Use
18W Interchangeable Wall-mount Switching Power Supplier for Worldwide Use
18W Interchangeable Wall-mount Switching Power Supplier for Worldwide Use
18W Interchangeable Wall-mount Switching Power Supplier for Worldwide Use
18W Interchangeable Wall-mount Switching Power Supplier for Worldwide Use

18W Interchangeable Wall-mount Switching Power Supplier for Worldwide Use

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Features:
    • Compact size and easy to carry
    • Punctual delivery and competitive price
    • Single outputs to15/18W
    • Meet safety agency requirements and complies EMI/EMC
    • Modified and customized designs are available
    • 1-year warranty
    • With CE/UL/LVD/FCC/GS/C-tick certificates
    • Wall mount type
  • Parameters:
    • Inputs:
      • Voltages: 100-240V AC
      • Frequencies: 50-60Hz
      • Current: 1.2A maximum
    • Outputs:
      • Load regulation: 5% typical
      • Ripple range: 1-2%P-P Laxford output voltage full load
      • Transit response: 0.5mS for 50% load change typical
      • Holdup time: 10ms full load
      • Protection: short circuit protection/over voltage protection/over current protection
      • DC cords: 22/20AWG
    • Electronic:
      • Topology: switching fly back
      • Hi-Pot Withstand: 3,000V AC primary secondary
      • Leakage current: 0.25mA @ 2 pins
      • Efficiency: meet CEC and Energy Star
      • EMI conduction radiation: compliance to EN55022 Class B
      • Harmonic current: compliance to EN61000-3-2, 3
      • EMS immunity: compliance to EN61000-4-2, 3.4, 5, 6, 8, 11
      • MTBF: 50,000 calculated hours at 25 by ML-HDBK-217F
  • Compact size and easy to carry
  • Punctual delivery and competitive price
  • Single outputs to15/18W
  • Meet safety agency requirements and complies EMI/EMC
  • Modified and customized designs are available
  • 1-year warranty
  • With CE/UL/LVD/FCC/GS/C-tick certificates
  • Wall mount type
  • Inputs:
    • Voltages: 100-240V AC
    • Frequencies: 50-60Hz
    • Current: 1.2A maximum
  • Outputs:
    • Load regulation: 5% typical
    • Ripple range: 1-2%P-P Laxford output voltage full load
    • Transit response: 0.5mS for 50% load change typical
    • Holdup time: 10ms full load
    • Protection: short circuit protection/over voltage protection/over current protection
    • DC cords: 22/20AWG
  • Electronic:
    • Topology: switching fly back
    • Hi-Pot Withstand: 3,000V AC primary secondary
    • Leakage current: 0.25mA @ 2 pins
    • Efficiency: meet CEC and Energy Star
    • EMI conduction radiation: compliance to EN55022 Class B
    • Harmonic current: compliance to EN61000-3-2, 3
    • EMS immunity: compliance to EN61000-4-2, 3.4, 5, 6, 8, 11
    • MTBF: 50,000 calculated hours at 25 by ML-HDBK-217F
  • Voltages: 100-240V AC
  • Frequencies: 50-60Hz
  • Current: 1.2A maximum
  • Load regulation: 5% typical
  • Ripple range: 1-2%P-P Laxford output voltage full load
  • Transit response: 0.5mS for 50% load change typical
  • Holdup time: 10ms full load
  • Protection: short circuit protection/over voltage protection/over current protection
  • DC cords: 22/20AWG
  • Topology: switching fly back
  • Hi-Pot Withstand: 3,000V AC primary secondary
  • Leakage current: 0.25mA @ 2 pins
  • Efficiency: meet CEC and Energy Star
  • EMI conduction radiation: compliance to EN55022 Class B
  • Harmonic current: compliance to EN61000-3-2, 3
  • EMS immunity: compliance to EN61000-4-2, 3.4, 5, 6, 8, 11
  • MTBF: 50,000 calculated hours at 25 by ML-HDBK-217F
