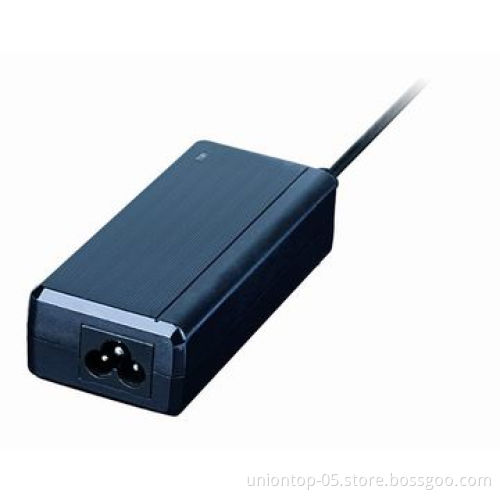

Desktop 65W 24V AC/DC adapter with CE, FCC, UL, GS, PSE, CB, SAA, C-tick approval

Desktop 65W 24V AC/DC adapter with CE, FCC, UL, GS, PSE, CB, SAA, C-tick approval

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

24V 2.5A /12V, 4A/5A switching power supply
1 year warranty
With UL, SAA, PSE, GS, CE, CB, FCC, C-tick marks
Compliant with the RoHS Directive
13 years factory experience

Features:

Input:
- Voltage: 100-240V AC
- Full voltage: 90-264V AC
Frequency: 50Hz-60Hz (maximum)
Efficiency 80% minimum, at full load and within input voltage of 230V AC
Input protection:
- Over-current Input power is off by fuse ratings 3.15A/250V AC
Output:
- Output voltage: +18V ±5%, +32V ±5%
- Output current: 0.2A, 0.05A, 2.5A and 1.5A
Line regulation 1% maximum
Load regulation 5% maximum at full load and within input voltage 120-240V AC
Ripple + noise: 180mV maximum, 320mV maximum
Oscilloscope bandwidth=20MHz, 10uF/50V electrolytic and 0.1uF/50V ceramic capacitors are connected at output
Rise time 2S maximum, at Vin=230V AC/60Hz output
Output: +18V/0.2A, +32V/1.5A
Output protection:
- Overload no odor, smoke, fire, plastic deformation and excessive heat happen
Increase load current gradually until the output is shorted or burst
Short-circuit no odor, smoke, fire, plastic deformation, and excessive heat happen
Over the operating temperature range

Environmental characteristics:

Storage temperature range: -20 to 60°C
Operating temperature range: 0 to 40°C
Storage RH range: 5 to 95% RH relative humidity
Operating RH range: 20 to 90%
Burn-in 4 hours (the new model for first production for 4 hour, mass production for 2 hours)
Each unit before shipping, full load at Vin=220V AC

Quality and warranty of our power adapter:

Please kindly note that our products have approved CB, UL, CUL, SAA, TUV-GS, CE and GS
PSE-JET, KC, FCC, RoHS and energy star saving requirement
Our products are 100% life testing, 100% Hi-pot and 100% electrical function test, and all of our products are protected by Hi-pot, over-current, over-voltage
All of our product have 1 year guarantee, the life circle is 3-5 years under normal use, if you found the quality issue, you can return the defect product, we send you the good product as replacement

24V 2.5A /12V, 4A/5A switching power supply

1 year warranty

With UL, SAA, PSE, GS, CE, CB, FCC, C-tick marks

Compliant with the RoHS Directive

13 years factory experience

Input:

Voltage: 100-240V AC
Full voltage: 90-264V AC

Frequency: 50Hz-60Hz (maximum)

Efficiency 80% minimum, at full load and within input voltage of 230V AC

Input protection:

Over-current Input power is off by fuse ratings 3.15A/250V AC

Output:

Output voltage: +18V ±5%, +32V ±5%
Output current: 0.2A, 0.05A, 2.5A and 1.5A

Line regulation 1% maximum

Load regulation 5% maximum at full load and within input voltage 120-240V AC

Ripple + noise: 180mV maximum, 320mV maximum

Oscilloscope bandwidth=20MHz, 10uF/50V electrolytic and 0.1uF/50V ceramic capacitors are connected at output

Rise time 2S maximum, at Vin=230V AC/60Hz output

Output: +18V/0.2A, +32V/1.5A

Output protection:

Overload no odor, smoke, fire, plastic deformation and excessive heat happen

Increase load current gradually until the output is shorted or burst

Short-circuit no odor, smoke, fire, plastic deformation, and excessive heat happen

Over the operating temperature range

Voltage: 100-240V AC

Full voltage: 90-264V AC

Over-current Input power is off by fuse ratings 3.15A/250V AC

Output voltage: +18V ±5%, +32V ±5%

Output current: 0.2A, 0.05A, 2.5A and 1.5A

Overload no odor, smoke, fire, plastic deformation and excessive heat happen

Storage temperature range: -20 to 60°C

Operating temperature range: 0 to 40°C

Storage RH range: 5 to 95% RH relative humidity

Operating RH range: 20 to 90%

Burn-in 4 hours (the new model for first production for 4 hour, mass production for 2 hours)

Each unit before shipping, full load at Vin=220V AC

Please kindly note that our products have approved CB, UL, CUL, SAA, TUV-GS, CE and GS

PSE-JET, KC, FCC, RoHS and energy star saving requirement

Our products are 100% life testing, 100% Hi-pot and 100% electrical function test, and all of our products are protected by Hi-pot, over-current, over-voltage

All of our product have 1 year guarantee, the life circle is 3-5 years under normal use, if you found the quality issue, you can return the defect product, we send you the good product as replacement
