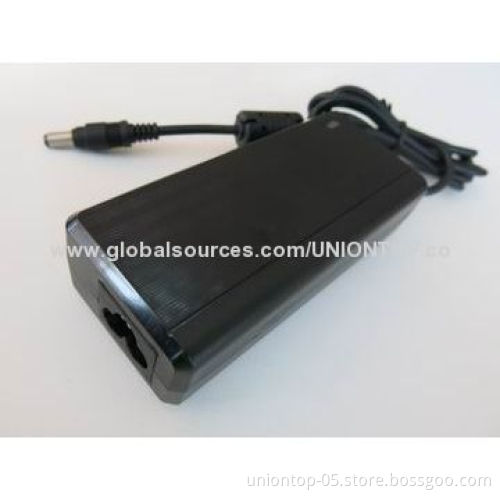

CE/FCC/GS/CB 24V/2.5A/2.7A UL adapter, power adapter, 12V 5A

CE/FCC/GS/CB 24V/2.5A/2.7A UL adapter, power adapter, 12V 5A

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

Power adaptor 12V 5A
Inputs: 100V-240V

Company induction:

We are a professional AC DC adaptor manufacturer with 10 years, our factory covers 6000 square meters, we have 300 workers in our factory
Our certificate: CE, CB, UL, FCC, KC, CUL, PSE, C-TICK, MEPS RoHS, GS, EMC, V, RoHS, REACH and so on

Product characteristics:

Inputs: 100-240V 50/60Hz (47/63Hz)
Output power: 60W
Output voltage: 3-24V
Output current: 0.1-6A
Line regulation: ±1%
Load rang: ±5%
Dielectric strength test: AC 3000V/5mA
Insulation resistance: DC 500V/100MΩ
Energy efficiency level 5 energy star (V 2.0)
Size: 115*50*30.3mm

Safety compliance standards:

CUL, UL (ITE UL60950)
TUV/GS (ITE EN60950)
CE, CB, VDE, UL, FCC
CCC (ITE GB4943) SAA, PSE, KC

Output characteristic:

Static output characteristics
R+N: 120mVP-P
Ripple and noise: measurement is done by 20MHz bandwidth oscilloscope and the output paralleled a 0.1uF ceramic capacitor and a 10uF electrolysis capacitor
Test under the condition of rated input and rated output
Turn-on delay time: 3S max.100VAC to 240VAC input and full load
Hold-up time: 20mS min. full load and 230VAC/50Hz input turn off at worst case
Rise time: 20mS max. rated load
Fall time: 60mS max. full load
Output overshoot/undershoot: 10% max. when the power on or off

Reliability:

Average fault-free times under 25°C ambient temperature maximum working load
Average fault-free time 50000 hours
(As per MIL-HDBK-217 standards)

Environmental requirements:

Working temperatures: 0-40°C maximum working load
Storage temperatures: -20-60°C
Moisture under non-condensing condition, moisture 5% - 95%

Tests:

Burn-in test: power supply shall be burn-in for 4 hours under normal input and 80-100% rated load at 40°C±5°C
Height: 1m, the product should be fall off on the hardwood with the thickness of 20mm and the hardwood shall
