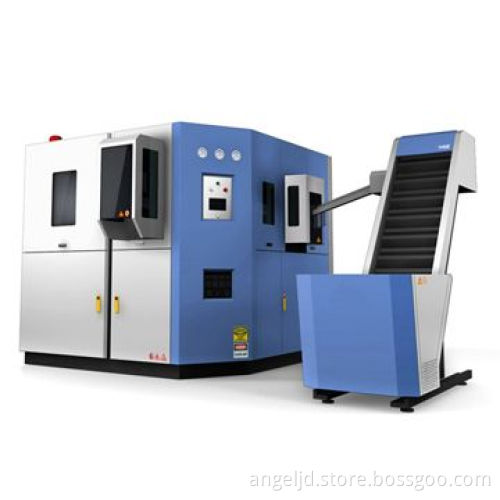

Automatic Stretch Blow-molding Machine with Two Cavities and One Set of Air Dryer for LP

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

JDS-CPJ-SS2600 is one of fastest liner blow molding machines in mainland of China by now

JDS-CPJ-S2500 reaches around 2500bph for 350ml bottle

It has independent baking tunnel and blow station so that time for mold opening is shortened with a result of speedy blowing and high output, damage to machine is lessened so as to enjoy reliable performance and long service life, as well as machine runs more smoothly and steadily

Description type:

Automatic blowing machine (two cavities) MG-SS2600: 1 set
Air compressor:
- 30 bars, 3 sets, and 1.2m³/30 bars
- 10 bar, 1 set
- Air filter: 4 sets
Air dryer:
- For HP 30 bar: 1 set, 1.0m³/30 bars
- For LP 10 bar: 1 set
Air tank: 30 bar, 1 set, 30 bar
Industrial chiller: fan type (1 set)
Bottle mold: 2-cavity, 1 set 2500b/hr
Product volume: 0.1 to 2.5L
Product raw material: PET
Mold plate maximum dimensions: 420 x 500mm
Mold opening stroke:
- 0.1 to 2L: 150mm
- 6L (1 cavity): 250mm
Maximum mold thickness:
- 0.1 to 2L: 150mm
- 5L (1 cavity): 250mm
Clamping force: 380kN
Air pressure range for working: 0.8 to 1.25MPa
Air pressure range for blowing: 1.5 to 4.0MPa
Temperature control: 7 sections
Length range of perform: 50 to 220mm
Inner diameter range of perform tube: 15 to 126mm
Stretching bar diameter range: 8 to 50mm
Quantity of heating rotation: 34 to 60 pieces
Length of bottle: 340mm
Diameter of bottle: 60 to 220mm
Power: 23kW
Temperature in perform: 3.5kW
Weight: 2600kg
Main machine dimensions: 316 x 225 x 226cm
Weight of conveyor: 400kg
Conveyor dimensions: 200 x 190 x 226cm
Electric voltage/frequency: 220V/380/50Hz
