Automatic Blow-molding Machine with 240mm Mold Thickness, 25kW Power

Get Latest Price

Payment Type:: T/T, L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C

Product Description

Features:

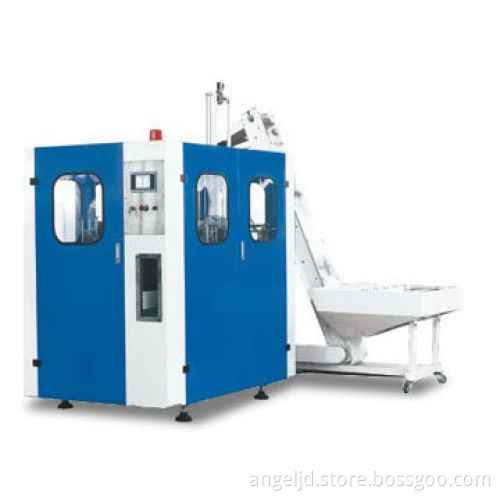

CM-A2/A4 full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes it is widely used to produce the carbonated bottle, mineral water bottle, pesticide bottle, oil bottle, cosmetics bottle, wide-mouth bottle and hot filling bottle and more
Reasonable design, fully automatic control, saves power and labor
Feeding system carries the performs by robot arms automatically
Infrared oven adopts the quartz lamp to heat the PET tube
Fully automatic process with low investment, high efficiency, quick and safe operation, easy for maintenance
We have perfect service after sales
Adopting high quality components

Main parameters:

Depends on bottle design: 1,800 to 2,000 pieces/h
Volume: 0.1 to 2L
Body diameter: ≤100mm
Height: ≤310mm
Neck diameter: ≤38mm
Cavity: 2
Mold thickness: 240mm
Mold size: 260 x 240 x 370mm
Electrical source power: 380/220V, 50/60HZ 3-phase
Power: 25kW
Really use power: 6.5kW
HP air compressor: 1.4 m³/minute 3.0MPa
LP air compressor: 1.0 m³/minute 1.0MPa
Air tank: 0.6m³ 3.0MPa
Air dryer: 1.0m³/minute 3.0MPa
Water chiller: 3HP
Size (L x W x H): 1,900 x 1,280 x 1,930mm
Weight: 2,000kg
Size (L x W x H): 2,000 x 950 x 2,480mm
Weight: 250kg
