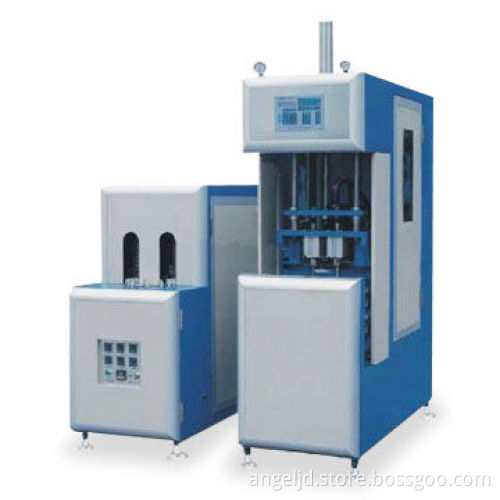

Semi-automatic Blow-molding Machine with Microcomputer Controlling System
  • Semi-automatic Blow-molding Machine with Microcomputer Controlling System
Semi-automatic Blow-molding Machine with Microcomputer Controlling System

Semi-automatic Blow-molding Machine with Microcomputer Controlling System

Get Latest Price
Payment Type:
T/T, L/C, D/P
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, D/P
Product Description
Product Description
  • Brief introduction:
    • JND series of semi-automatic stretch blow molding machine designed by CE standard
    • With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily
    • Only one person without special training operates it more easily and more safely
    • It is fit to blow carbonated beverage bottles, mineral water bottles, cosmetics bottles and hot-filling bottles, especially oil bottles with handles
    • Main technical standards
    • Clamping force: 20T
    • Clamping stroke: 230mm
    • Maximum stretching stroke: 380mm
    • Number of cavities: 2 cavity
    • Theoretical output: 0.1 to 2.5L: 880BPH/850BPH, 3 to 6L: 380BPH
    • Maximum mold thickness: 300mm
    • Space between tie bars: 280 x 500mm
    • Electrical system:
    • Voltage standard: 380V AC/50Hz
    • Number of heating zone: 2 sections
    • Total power (full loaded): 6kW
  • Container:
    • Maximum container volume: 0.1 to 2.5L (2cav), 3 to 6L (1cav)
    • Neck diameter range: 15 to 60mm
    • Maximum container diameter: 35 to 220mm
    • Maximum container height: 450mm
  • Auxiliary system:
    • Low air compressor: 8 to 10 bar
    • High air compressor: 30 bar
    • Air dryer: 2.0/30
    • Dimension and weight (L x W x H):
    • Blow molding machine: 1,480 x 600 x 2130mm
    • Preform autoloader: 1,370 x 610 x 1340mm
    • Net weight: 0.82T
  • JND series of semi-automatic stretch blow molding machine designed by CE standard
  • With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily
  • Only one person without special training operates it more easily and more safely
  • It is fit to blow carbonated beverage bottles, mineral water bottles, cosmetics bottles and hot-filling bottles, especially oil bottles with handles
  • Main technical standards
  • Clamping force: 20T
  • Clamping stroke: 230mm
  • Maximum stretching stroke: 380mm
  • Number of cavities: 2 cavity
  • Theoretical output: 0.1 to 2.5L: 880BPH/850BPH, 3 to 6L: 380BPH
  • Maximum mold thickness: 300mm
  • Space between tie bars: 280 x 500mm
  • Electrical system:
  • Voltage standard: 380V AC/50Hz
  • Number of heating zone: 2 sections
  • Total power (full loaded): 6kW
  • Maximum container volume: 0.1 to 2.5L (2cav), 3 to 6L (1cav)
  • Neck diameter range: 15 to 60mm
  • Maximum container diameter: 35 to 220mm
  • Maximum container height: 450mm
  • Low air compressor: 8 to 10 bar
  • High air compressor: 30 bar
  • Air dryer: 2.0/30
  • Dimension and weight (L x W x H):
  • Blow molding machine: 1,480 x 600 x 2130mm
  • Preform autoloader: 1,370 x 610 x 1340mm
  • Net weight: 0.82T
