Product Description

Description:

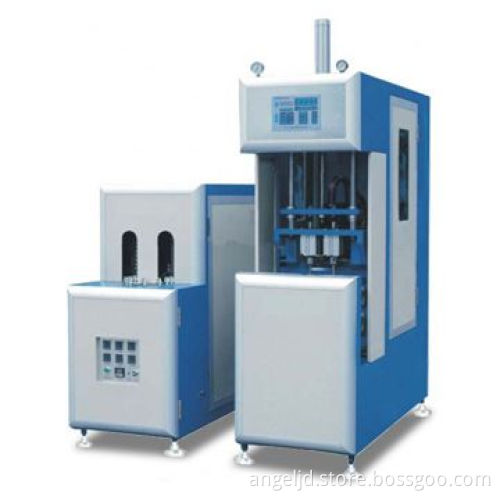

CP-pet-880 semi-automatic stretch blow molding machine is designed according to CE standard with microcomputer controlling system, it controls various technical parameter more accurately and more steadily only one worker can operates It is suitable to blow carbonated beverage bottles, mineral water bottles, cosmetics bottles and got-filling bottles
Main technical parameters:
- General Information: CP-pet-880
- Clamping force: 20T
- Clamping stroke: 230mm
- Maximum stretching stroke: 380mm
- Number of cavities: 2
- Theoretical output: 0.1 to 2.5l: 880BPH, 3 to 6: 380BPH
- Maximum molding thickness: 300mm
- Space between tie bars: 280 x 500mm
- Electrical system
- Voltage standard: 380v/3PH/50Hz or special order
- Number of heating zone: 2 sections
- Total power (full loaded): 6KW
- Container
- Maximum container volume: 0.1 to 2.5L (2 cavities) 3 to 6l(1cavities)
- Neck diameter range: 15 to 60mm
- Maximum container diameter: 35 to 220mm
- Maximum container height: 450mm
- Auxiliary system
- Low air compressor: 8 to 10 bar
- High air compressor: 30 bar
- Air dryer: 1.2/30
Dimension and weight (L x W x H):
- Blow molding machine: 148 x 60 x 213cm
- Pre-heater: 137 x 61 x 134cm
Net weight: 0.82 ton

CP-pet-880 semi-automatic stretch blow molding machine is designed according to CE standard with microcomputer controlling system, it controls various technical parameter more accurately and more steadily only one worker can operates It is suitable to blow carbonated beverage bottles, mineral water bottles, cosmetics bottles and got-filling bottles
