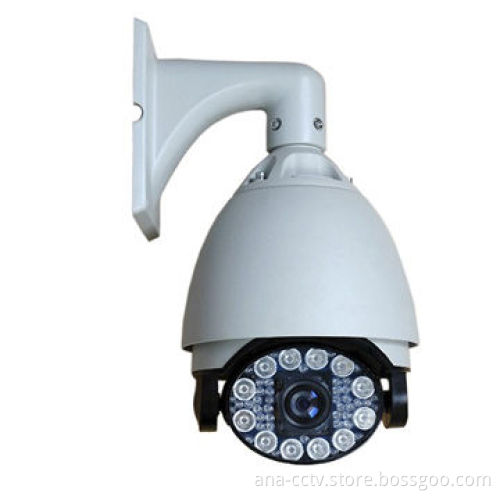

IP66 Outdoor IR High-speed Dome Camera with 12pcs 8mm/42pcs 5mm IR-LEDs and 128 Preset Points

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

For outdoor use

Preset speed: 120°/sec

Preset points: 128 points

12pcs 8mm, 42pcs 5mm IR-LED

IR distance: 150m

Image sensor: 1/4 type IT CCD (EXview HAD)

Number of effective pixels: approx. 440,000 pixels

Lens: 18x zoom, f=4.1 (wide) to 73.8 mm (tele), F1.4 toF3.0

Digital zoom: 12x (216x with optical zoom)

Angle of view: (H) 48° (wide end) to 2.8° (teleend)

Minimum object distance: 290mm (wide end) to 800mm (teleend)

Sync. system internal/external (V-Lock)

Minimum illumination: 0.71x (typical) (50 IRE)

S/N ratio: more than 50dB

Electronic shutter: 1/1 to 1/10,000s

22 steps

White balance: auto, ATW, indoor, outdoor, one-push WB, manualWB

Gain: auto/manual (-3 to 28dB, 2dB steps)

AE control: auto, manual, priority mode, bright, EVcompensation, backlight compensation

EV compensation -10.5 to 10.5dB (1.5dB steps)

Backlight compensation: on/off

Privacy zone masking: on/off (24 positions)

Focusing system: auto (sensitivity: normal, low), one-push AF,manual, infinity

Picture effect: E-flip, negative, art, black and white, mirrorimage

Camera operation: switch zoom tele, zoom wide

Video output VBS: 1.0Vp-p (sync negative)

Camera control interface: VISCA protocol (TTL/CMOS)

Address: 0 to 255

Pan range: 360° continue

Tilt range: 0 to 90°

Manual speed:

Pan: 0.5 to 60°/s

Tilt: 0.5 to 40°/s

Preset accuracy: ±0.10°

Integrate multi-protocol: Pelco_D

Baud rate: 4800bps

Supported camera: Sony, LG and CNB

Auto flip: 180°

PTZ tours: 8 groups, 16 preset points each group

Auto control LED, LED adjustable according to IR distance

Pan scan: 120°/s

A-B scan: 120°/s
