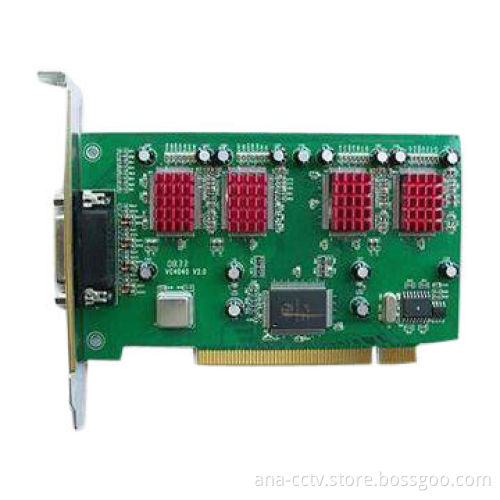

DVR Card with 528 x 384 Pixels Video Resolution, 9-bit Video Decoder

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

Philips SAA7134 chipset, 9-bit video decoder
Adopt advanced digital video processing arithmetic,auto-denies, high-resolution and quality
4-channel video input, 4-channel audio input
Support 24-channel real-time compressing and displaying(maximum)
Display rate: 100fps (PAL), 120fps (NTSC)
Record rate: 100fps (PAL), 120fps (NTSC)
Support video resolution: 352 x 288, 528 x 384 pixels
Compression format: H.264
Compression ratio: 50 to 120MB per hour per channel
Supports OSD timely cover, digital watermark, motion detectionrecording
Network protocol: TCP/UDP
Supports IE browser, client site software, built-in DDNS
Offer SDK and Demo source code

Systems requirement:

CPU: Intel Celeron D 2.66G or above
Main board: Intel series chipset main board (currently notcompatible with VIA series and SIS series chipset main boards)
RAM: 256MB or above (512MB needed for 24 channels)
VGA: integrated display card or above
Power supply: 300W or above (output: 3.3V DC, 27A)
OS: Microsoft's Windows 2000/XP
Direct version: 9.0 or above

Philips SAA7134 chipset, 9-bit video decoder

Adopt advanced digital video processing arithmetic,auto-denies, high-resolution and quality

4-channel video input, 4-channel audio input

Support 24-channel real-time compressing and displaying(maximum)

Display rate: 100fps (PAL), 120fps (NTSC)

Record rate: 100fps (PAL), 120fps (NTSC)

Support video resolution: 352 x 288, 528 x 384 pixels

Compression format: H.264

Compression ratio: 50 to 120MB per hour per channel

Supports OSD timely cover, digital watermark, motion detectionrecording

Network protocol: TCP/UDP

Supports IE browser, client site software, built-in DDNS
