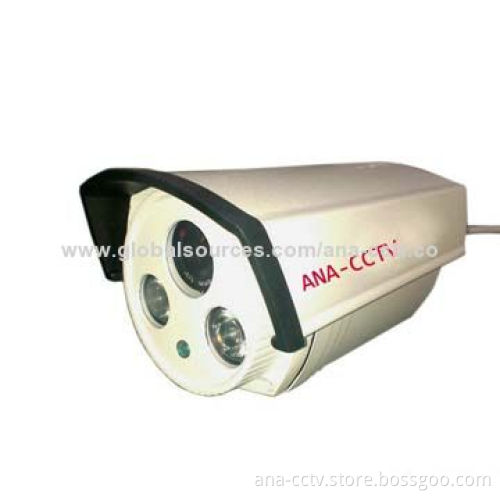

ANA-20318D 800TVL Supervisory CCTV Camera in Dubai

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Image sensor: 1/3-inch CMOS 800TVL

Effective pixels PAL (H x V): 952 x 782 pixels

Resolution: 800TVL low-Illumination

Signal system: PAL/NAST

Minimum Illuminable: 0.001 (Lux)

S/N ratio: more than 48dB (AGC off)

Electronic shutter: PAL = (1/50) to 1/100,000 seconds NTSC=(1/60) to 1/100,000 secretary

Gamma characteristic: 0.45

Sync system: internal synchronous

Back-light compensation: auto

Gain control (AGC): auto

Video out composite signal (1.0Vp-p, 75Ω)

Scanning system PAL: 625 lines, 50 field/second, NTSC: 525 lines, 60 field/second

Electronic shutter time auto: PAL 1/50-1/100, 000 second, NTSC 1/60-1/100, 000 second

Power consumption: 12V DC/350mA

Lens: 8.0mm

LED quantity: 2 pieces infrared lights

Wave length: 850nm

IR: distance 50 meters

Operating temperature: -10 to +50°C, 95% RH (maximum)

Storage temperature: -20 to +60°C, 95% RH (maximum)

Optional color: white
