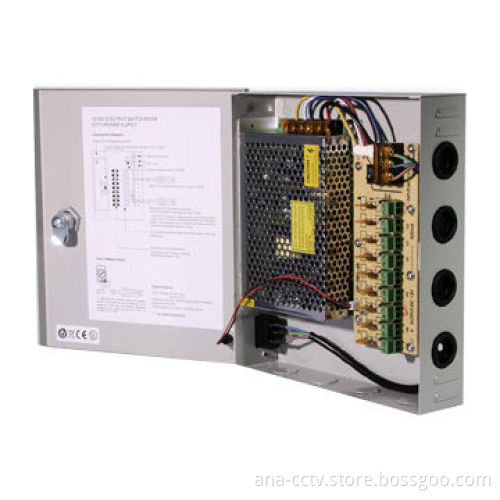

18CH 20A Power Box, PTC Fuses, 12V/20A/240W CCTV Power Supply with 18-channel
  • 18CH 20A Power Box, PTC Fuses, 12V/20A/240W CCTV Power Supply with 18-channel
18CH 20A Power Box, PTC Fuses, 12V/20A/240W CCTV Power Supply with 18-channel

18CH 20A Power Box, PTC Fuses, 12V/20A/240W CCTV Power Supply with 18-channel

Get Latest Price
Payment Type:
Paypal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Paypal
Product Description
Product Description
  • Specifications:
    • 12V/20A/18-channel output or 16-channel output isavailable
    • Output: 12V/20A
    • Over-voltage, over-current, short-circuit protections
    • Input voltage: 220V AC
    • Output current: 20A = 1.11A x 18
    • Output power: 240W
    • Environment qualification:
      • Working temperature: 0 to 40°C
      • Storage temperature: 0 to 70°C
      • Related humidity: 95% RH
      • Cooling method: cooling by free air convection
    • Input:
      • Rated input voltage: 220V AC
      • Input voltage range: 198 to 242V AC
      • Input current: 2.3A
      • Input power factor: PF
      • Input frequency range: 50/60Hz
      • Efficiency: >78%
    • Output:
      • Voltage without load: 12V DC
      • Voltage regulation: 12V +5%V DC
      • Voltage with full load: 12V, -5%, +5%V DC
      • Current regulation: 1%
      • Current range: 0.3 to 20A
      • Ripple and noise: less than 100mV
      • Peak: less than 250mV
      • Start time: less than 3 seconds
      • Hold up time: >20ms
  • 12V/20A/18-channel output or 16-channel output isavailable
  • Output: 12V/20A
  • Over-voltage, over-current, short-circuit protections
  • Input voltage: 220V AC
  • Output current: 20A = 1.11A x 18
  • Output power: 240W
  • Environment qualification:
    • Working temperature: 0 to 40°C
    • Storage temperature: 0 to 70°C
    • Related humidity: 95% RH
    • Cooling method: cooling by free air convection
  • Input:
    • Rated input voltage: 220V AC
    • Input voltage range: 198 to 242V AC
    • Input current: 2.3A
    • Input power factor: PF
    • Input frequency range: 50/60Hz
    • Efficiency: >78%
  • Output:
    • Voltage without load: 12V DC
    • Voltage regulation: 12V +5%V DC
    • Voltage with full load: 12V, -5%, +5%V DC
    • Current regulation: 1%
    • Current range: 0.3 to 20A
    • Ripple and noise: less than 100mV
    • Peak: less than 250mV
    • Start time: less than 3 seconds
    • Hold up time: >20ms
  • Working temperature: 0 to 40°C
  • Storage temperature: 0 to 70°C
  • Related humidity: 95% RH
  • Cooling method: cooling by free air convection
  • Rated input voltage: 220V AC
  • Input voltage range: 198 to 242V AC
  • Input current: 2.3A
  • Input power factor: PF
  • Input frequency range: 50/60Hz
  • Efficiency: >78%
  • Voltage without load: 12V DC
  • Voltage regulation: 12V +5%V DC
  • Voltage with full load: 12V, -5%, +5%V DC
  • Current regulation: 1%
  • Current range: 0.3 to 20A
  • Ripple and noise: less than 100mV
  • Peak: less than 250mV
  • Start time: less than 3 seconds
  • Hold up time: >20ms
