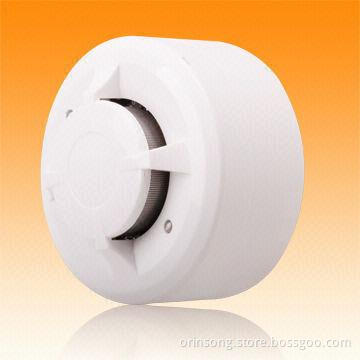

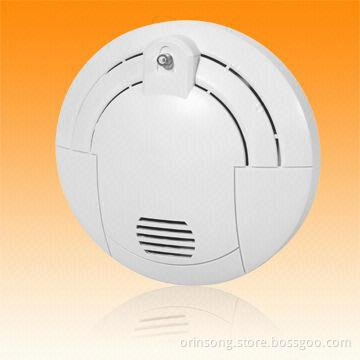

Conventional Photoelectric Smoke Detector, 2/3/4-wire with 12-35V DC Input Voltage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

Optical smoke chamber with high-stability
Network by current/reply, N.O/N.C optional
Adopted CMOS with low-power consumption
High adaptability to the ambient, with dust-proof,moisture-proof, anti-white light and high EMI immunityfunction
DC 12-35V input voltage
Orientation differences maximum/minimum: <1.6
Highlight dual-color LED indication
Anti-tamper switch
Unique bracket design and easy to install

Technical specifications:

Input voltage: 12-35V DC
Static current: d50uA (12-35V)
Alarm currents: 40-80mA (12-30V)
Operating humidity range: 10-95% RH (non coagulating)
Operating temperature: -10 - 55°C
Anti-wind capacity: 20m/second (no false alarm)
Maximum ripple voltage: 30% (peak-to-peak value)
Maximum electrify capacitance: 0.03uF
Electrify time: d60 seconds
Alarm reset: auto-reset (power-off reset, d0.5 secondsoptional)
Wiring mode: non polarized, 2-wire/3-wire/4-wire
Installation: ceiling mounted
Detecting area: 60m² (with 4 meter height)
Detecting sensitivity (response threshold): m = 0.5% dB-1(cotton wicks smoldering test)
Dimensions: ¦100*45mm
