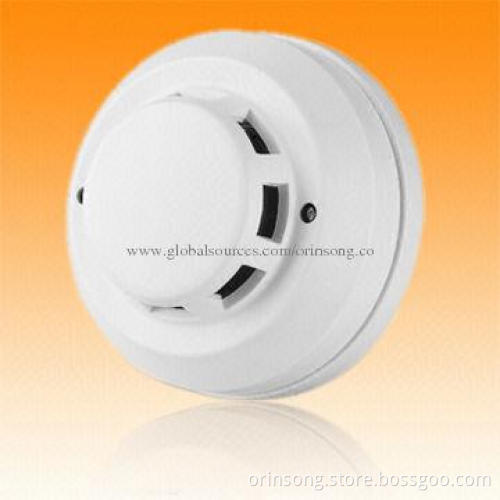

2-wire Smoke Detector
  • 2-wire Smoke Detector
2-wire Smoke Detector

2-wire Smoke Detector

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Main features:
    • Optical smoke chamber with high stability
    • Network by current, N.O/N.C optional
    • Adopted CMOS with low power consumption
    • High adaptability to the ambient, with dustproof, mothproof, moisture-proof, anti- white light, and high EMI immunity function
    • DC12-35V input voltage
    • Orientation differences: Mmax: Mmin<1.6
    • Unique bracket design, easy installation
  • Technical specifications:
    • Input voltage: DC 12-35V
    • Static current: ≤50uA (12-35V)
    • Alarm current: 40-80mA (12-30V)
    • Operating humidity: 10%-95% RH (non-coagulating)
    • Operating temperature: -10-55°C
    • Alarm reset: auto-reset (power-off reset, ≤0.5s optional)
    • Detecting sensitivity: m=0.5dBm-1
    • Wiring mode: non polarized, 2-wire
    • Installation: ceiling mounted
    • Detecting area: 60m² (with 4 meters height)
    • Dimensions: Φ100*40mm
  • Optical smoke chamber with high stability
  • Network by current, N.O/N.C optional
  • Adopted CMOS with low power consumption
  • High adaptability to the ambient, with dustproof, mothproof, moisture-proof, anti- white light, and high EMI immunity function
  • DC12-35V input voltage
  • Orientation differences: Mmax: Mmin<1.6
  • Unique bracket design, easy installation
  • Input voltage: DC 12-35V
  • Static current: ≤50uA (12-35V)
  • Alarm current: 40-80mA (12-30V)
  • Operating humidity: 10%-95% RH (non-coagulating)
  • Operating temperature: -10-55°C
  • Alarm reset: auto-reset (power-off reset, ≤0.5s optional)
  • Detecting sensitivity: m=0.5dBm-1
  • Wiring mode: non polarized, 2-wire
  • Installation: ceiling mounted
  • Detecting area: 60m² (with 4 meters height)
  • Dimensions: Φ100*40mm
