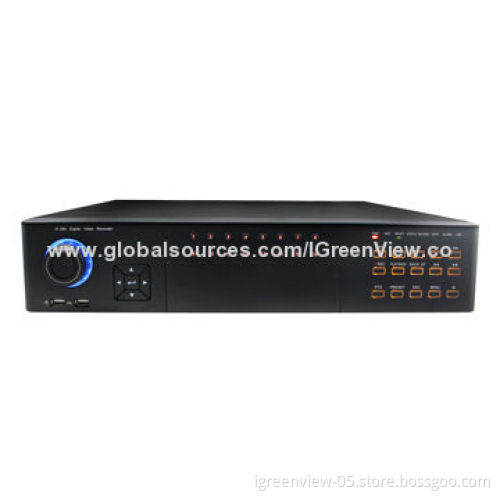

Standalone DVRs

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or MoneyGram

Product Description

Video compression: H.264

Video system: PAL/NTSC

Operation system: Linux (embedded)

Video-input/output: 16CH input/2CH output (BNC)

Audio input/output: 16CH input /2CH output (BNC)

Display resolution:

Record resolution:

PAL:D1 360×288(CIF),720x288(HD1),720x576(D1) 960H: 480×288(WCIF),960×288(WHD1),960×576(WD1)

NTSC:D1: 360×240(CIF),720x240(HD1),720x480(D1) 960H: 480×240(WCIF),960×240(WHD1),960×480(WD1)

Record speed:

Recording modes: Continuous/manual/motion detect /sensor/alarm recording

Playback channel: 1/4/9/16ch

Sensor & alarm I/O: 16ch sensor input;4 channel alarm out

IR extender port: Yes

HDD interface: 8 SATA HDDs, each HDD max up to 4TB

PTZ control: Built in RS485,support Pelco-P & Pelco-D

Mobile surveillance:

Support Mobile Phones based on Windows mobile, Symbian, iPhone, Blackberry and Android operation system

VGA: 800*600, 1024*768, 1280*1024, 1440*900, 1920*1080

HDMI: 1080P

Loop: 16CH loop out

Power supply: AC 100-240V/6.3A，50~60Hz

PAL:960×576 @ 25fps (each ch, frame) NTSC:960×480 @ 30fps(each ch, frame)

Display features:

single/quad/nine/sixteen/S.E.Q

PAL: D1 mode/960H mode: 25fps

NTSC: D1 mode/960H mode: 30fps

PAL: D1 mode/960H mode: 25fps

NTSC: D1mode/960H mode: 30fps
