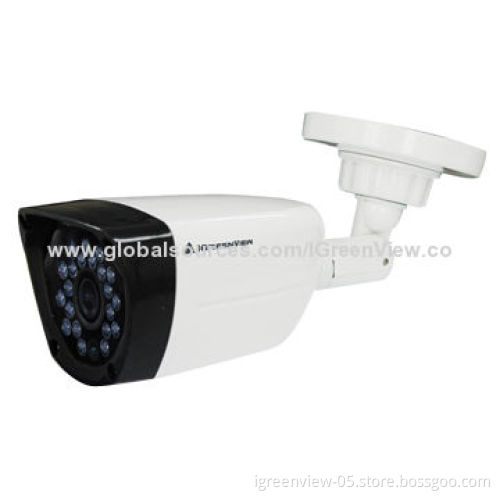

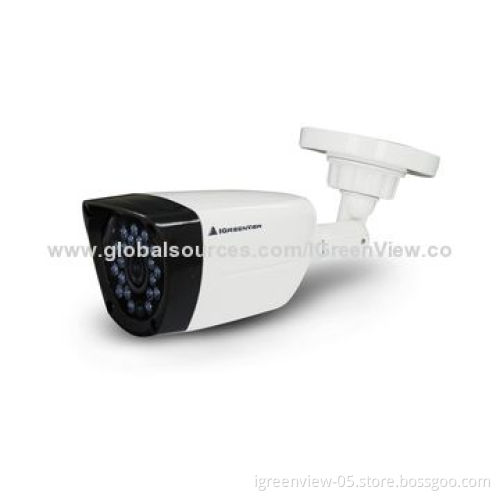

Mini HD CVI IR Bullet Camera with 19pcs Smart IR LED

Mini HD CVI IR Bullet Camera with 19pcs Smart IR LED

Get Latest Price

Payment Type:: T/T, L/C, Western Union or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or MoneyGram

Product Description

Main features:

1/3" high resolution sensor, 25/30fps@720P

High speed, long-distance real-time transmission

Up to 500m transmission distance

19pcs smart-IR LED,20m IRRange

OSD menu (optional), with smart-IR

Day/night (ICR), AWB, AGC, BLC

IP66 with new design

Video:

Image sensor: 1/3" Aptina super low lux 1.3 megapixel/720P CMOS
TV system: PAL/NTSC
Effective pixels: 1,280(H)*960(V)
S/N ratio: >50dB (AGC off )
Video output: 1Vp-p, 75Ω, BNC
Transmission distance: over 500M via 75-3 coaxial cable

Lens:

Focal length: 3.mm fixed lens
Minimum illumination: 0.01 lux/F=1.2 (0 lux IR on)

Operational:

Day and night: auto
Backlight compensation: auto
White balance: auto
Electronic shutter speed range: auto/4/25-1/45,000 seconds
OSD: friendly use OSD menu with multi-language
WDR (digital wide dynamic range)
DNR (2 digital noise reduction function)
Infrared LED: 19pcs IR LED
IR distance: 15-20M
IR-cut filter: ICR switch
Infrared spectrum: 850nm

Environmental:

Operation temperatures: -10-50°C
Waterproof casing: IP65

Electrical:

Input voltage/current: 70mA/350mA (IR on)
Adapter requirement : DC 12V, 1A

Mechanical:

Color: white
Bracket: all-oriented bracket
Dimensions: 210*80*78mm

Image sensor: 1/3" Aptina super low lux 1.3 megapixel/720P CMOS

TV system: PAL/NTSC

Effective pixels: 1,280(H)*960(V)

S/N ratio: >50dB (AGC off )

Video output: 1Vp-p, 75Ω, BNC

Transmission distance: over 500M via 75-3 coaxial cable

Focal length: 3.mm fixed lens

Minimum illumination: 0.01 lux/F=1.2 (0 lux IR on)

Day and night: auto

Backlight compensation: auto

White balance: auto

Electronic shutter speed range: auto/4/25-1/45,000 seconds

OSD: friendly use OSD menu with multi-language

WDR (digital wide dynamic range)

DNR (2 digital noise reduction function)

Infrared LED: 19pcs IR LED

IR distance: 15-20M

IR-cut filter: ICR switch

Infrared spectrum: 850nm

Operation temperatures: -10-50°C

Waterproof casing: IP65

Input voltage/current: 70mA/350mA (IR on)

Adapter requirement : DC 12V, 1A

Color: white

Bracket: all-oriented bracket

Dimensions: 210*80*78mm
