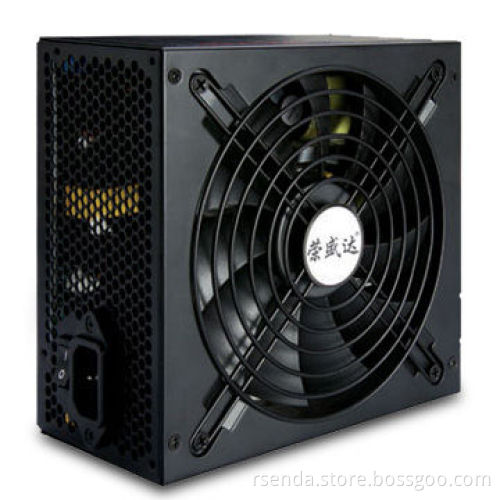

EPS Power Supply with 1,000W Power and Short-circuit Protection on All Outputs
  • EPS Power Supply with 1,000W Power and Short-circuit Protection on All Outputs
EPS Power Supply with 1,000W Power and Short-circuit Protection on All Outputs

EPS Power Supply with 1,000W Power and Short-circuit Protection on All Outputs

Get Latest Price
Payment Type:
T/T in advance or L/C at sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in advance or L/C at sight
Product Description
Product Description
  • Features:
    • For Intel EPS12V version 2.92
    • Output: 1,000W (1,260W peak)
    • AC input full range: 100 - 240V AC
    • High efficiency
    • Low ripple and noise
    • Output over-voltage protection
    • Short-circuit protection on all outputs
    • Internal: 14cm fan
    • 100% hi-pot tested
    • 100% burn-in under high ambient temperature (50°C)
    • Active PFC (Power Factor Correction) circuit
    • MTBF: 100K hours at 25°C
  • Input specifications:
    • AC input: 100 - 240V
    • Frequency: 47 - 63Hz
    • Current: 15 - 7A at 100 - 240V AC, 47 - 63Hz
  • Output specification:
    • Maximum power: 1,000W
    • Color: black
    • Cooling system:
      • Speed: 2,200rpm (+/-10%)
      • Dimensions: 158 x 150 x 86mm
      • Temperature auto control: 800rpm at 41.7 - 2,200rpm at95.5cfm
      • Noise: 22dB at 1,800rpm
      • PG signal: 100 - 500ms
      • Holdup time: 17ms (min)
      • Efficiency: 80%
  • For Intel EPS12V version 2.92
  • Output: 1,000W (1,260W peak)
  • AC input full range: 100 - 240V AC
  • High efficiency
  • Low ripple and noise
  • Output over-voltage protection
  • Short-circuit protection on all outputs
  • Internal: 14cm fan
  • 100% hi-pot tested
  • 100% burn-in under high ambient temperature (50°C)
  • Active PFC (Power Factor Correction) circuit
  • MTBF: 100K hours at 25°C
  • AC input: 100 - 240V
  • Frequency: 47 - 63Hz
  • Current: 15 - 7A at 100 - 240V AC, 47 - 63Hz
  • Maximum power: 1,000W
  • Color: black
  • Cooling system:
    • Speed: 2,200rpm (+/-10%)
    • Dimensions: 158 x 150 x 86mm
    • Temperature auto control: 800rpm at 41.7 - 2,200rpm at95.5cfm
    • Noise: 22dB at 1,800rpm
    • PG signal: 100 - 500ms
    • Holdup time: 17ms (min)
    • Efficiency: 80%
  • Speed: 2,200rpm (+/-10%)
  • Dimensions: 158 x 150 x 86mm
  • Temperature auto control: 800rpm at 41.7 - 2,200rpm at95.5cfm
  • Noise: 22dB at 1,800rpm
  • PG signal: 100 - 500ms
  • Holdup time: 17ms (min)
  • Efficiency: 80%
