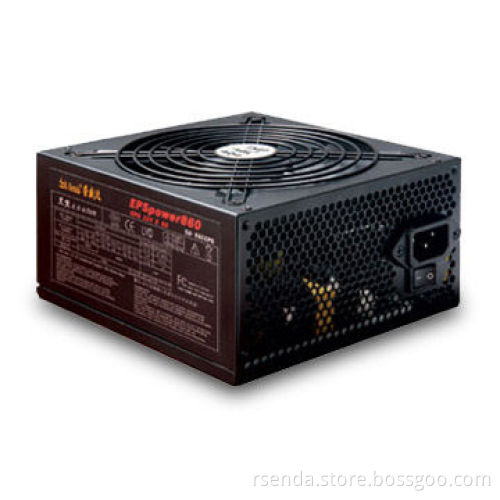

800W ATX Power Supply with Active PFC and Short-circuit Protection on All Outputs

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in advance or L/C at sight

Product Description

Features:

Input specifications:

Output specification:

Cooling system:

Speed: 2,200rpm (+/-10%)

Dimension: 158 x 150 x 86mm

Temperature auto control: 800rpm at 41.7cfm to 2,200rpm at95.5cfm

Noise: 22dB at 1,800rpm

PG signal: 100 - 500ms

Holdup time: 17ms (minimum)

Efficiency: 80%

For Intel EPS12V V2.92

Output: 800W (960W peak)

AC input full range: 100 - 240V AC

High efficiency

Low ripple and noise

Output overvoltage protection

Short-circuit protection on all outputs

Internal: 14 cm fan

100% hi-pot tested

100% burn-in under high ambient temperature (50°C)

Active PFC (Power Factor Correction) circuit

MTBF: 100,000 hours at 25

AC input: 100 - 240V

Frequency: 47 - 63Hz

Current: 12 - 6A at 100 - 240V AC, 47 - 63Hz

Maximum power: 800W

Color: black
