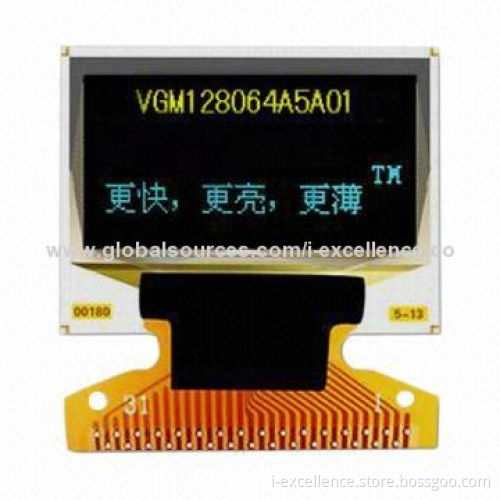

0.96-inch OLED Display Module with ZIF Connector and Blue Color

Get Latest Price

Payment Type:: 30% Deposit and 70% T/T before Shipment

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	30% Deposit and 70% T/T before Shipment

Product Description

Overview:

This is a monochrome OLED display module with 128 x 64 dot matrix
The characteristics of this display module are high-brightness, self-emission, high-contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low-power consumption

Features:

Display color: blue
Dot matrix: 128 × 64
Driver IC: SH1106G
Interface: 8-bit 8080, 8-bit 6800, 3-wire and 4-wire SPI, IIC
Wide range of operating temperatures: -40 to 70℃

Mechanical data:

Dot matrix (W x H): 128 x 64 - 2
Dot size (W x H): 0.15 x 0.155mm²
Dot pitch (W x H): 0.17 x 0.175mm²
Aperture rate: 78% 5
Active area (W x H): 21.74 x 11.18mm²
Panel size (W x H x T): 26.7 x 19.26 x 1.05mm3
Module size (W x H x T): 26.7 x 59.26 x 1.28mm3
Diagonal A/A size: 0.96 inches
Module weight: 1.33 ±10% grams
