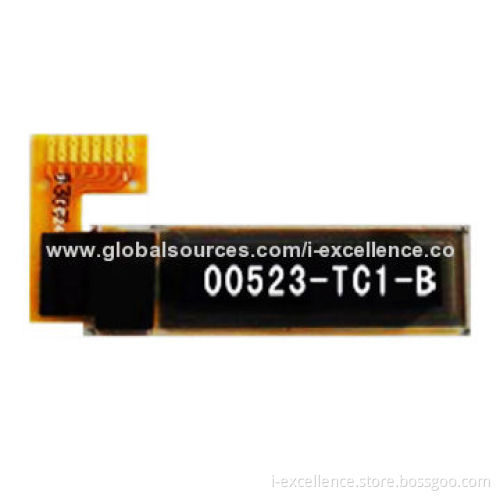

0.69-inch OLED Display Module with 96 x 16 Dot Matrix, White Color Display and I2C Interface

Get Latest Price

Payment Type:: 30% Deposit or 70% T/T before Shipment

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	30% Deposit or 70% T/T before Shipment

Product Description

Overview:

This is a monochrome OLED display module with 96 x 16 dot matrix
The characteristics of this display module are high-brightness, self-emission, high-contrast ratio, slim/thin outline, wide viewing angle and temperature range, low-power consumption

Features:

Display color: white
Driver IC: SSD 1307Z
Interface: I2C
Wide range of operating temperature: -40 to 70°C

Mechanical data:

Dot size (W x H): 0.16 x 0.18mm
Dot pitch (W x H): 0.18 x 0.20mm
Aperture rate: 80%
Active area (W x H): 17.26 x 3.18mm
Panel size (W x H x T): 26.3 x 8 x 1.05mm
Module size (W x H x T): 30.3 x 14.82 x 1.25mm
Diagonal A/A size: 0.69-inch
Module weight: TBD

This is a monochrome OLED display module with 96 x 16 dot matrix

The characteristics of this display module are high-brightness, self-emission, high-contrast ratio, slim/thin outline, wide viewing angle and temperature range, low-power consumption

Display color: white

Driver IC: SSD 1307Z

Interface: I2C

Wide range of operating temperature: -40 to 70°C

Dot size (W x H): 0.16 x 0.18mm

Dot pitch (W x H): 0.18 x 0.20mm

Aperture rate: 80%

Active area (W x H): 17.26 x 3.18mm

Panel size (W x H x T): 26.3 x 8 x 1.05mm

Module size (W x H x T): 30.3 x 14.82 x 1.25mm

Diagonal A/A size: 0.69-inch

Module weight: TBD
