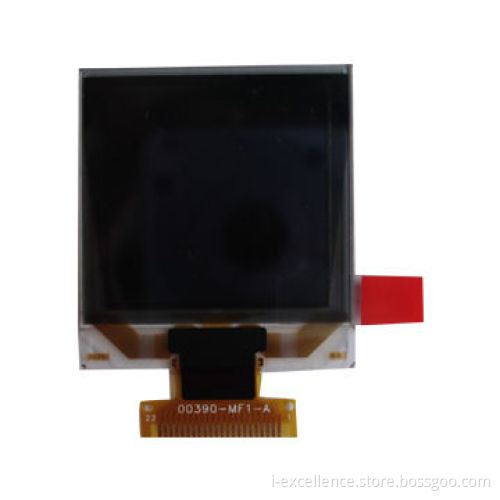

1.46-inch OLED Display Module, Full Color, 128 x 128-dot Resolution, Wide Viewing Angle, Slim ShapeNew
- Payment Type:
- T/T 30% Deposit and 70% before Shipment
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T 30% Deposit and 70% before Shipment |
|---|
- OLED monochrome matrix display module
- With high-brightness, self-emission, high-contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low-power consumption
- Display color: yellow
- Driver IC: SSD1305Z
- Interface: 8-bit 8080, 8-bit 6800 and SPI, I²C
- Wide range of operating temperatures: -40 to 70°C
- Dot matrix (W x H): 128 x 128 dots
- Dot dimensions (W x H): 0.0435 x 0.1855mm
- Dot pitch (W x H): 0.0685 x 0.2055mm
- Aperture rate: 57%
- Active area (W x H): 26.279 x 26.284mm
- Panel dimensions (W x H x T): 33.5 x 33.5 x 1.4mm
- Module dimensions (W x H x T): 33.5 x 54.33 x 1.61mm
- Diagonal A/A size: 1.46 inches
- Module weight: TBD
-
