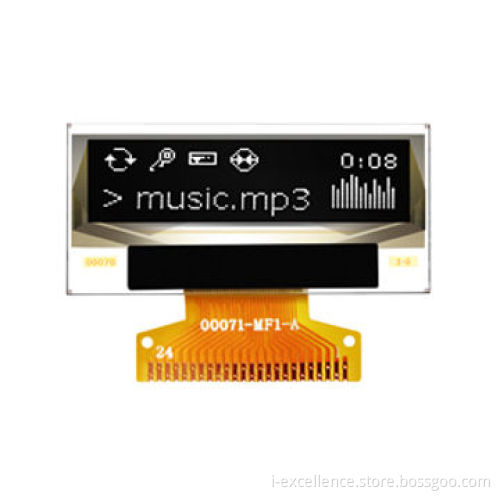

1.1-inch OLED Display Module with SH1103 Driver IC, White Display Color and High BrightnessNew

Get Latest Price

Payment Type:: 30% Deposit and 70% T/T before Shipment

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	30% Deposit and 70% T/T before Shipment

Product Description

Product details:

The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low power consumption

Features:

Display color: white
Dot matrix: 128 x 36 dot matrix
Driver IC: SH1103
Interfaces: 8-bit 6800, 8-bit 8080, I2C and SPI
Wide range of operating temperatures: -40 to 70°C

3 mechanical data:

Dot matrix (W x H): 128 x 36 dots
Dot size (W x H): 0.19 x 0.19mm
Dot pitch (W x H): 0.21 x 0.21mm
Aperture: 82%
Active area (W x H): 26.86 x 7.54mm
Panel size (W x H x D): 31 x 14.3 x 1mm
Module size (W x H x D): 31 x 26.3 x 1.23mm
Diagonal A/A size: 1.1-inch
Module weight: 1.08g ± 10%

The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low power consumption

Display color: white

Dot matrix: 128 x 36 dot matrix

Driver IC: SH1103

Interfaces: 8-bit 6800, 8-bit 8080, I2C and SPI

Wide range of operating temperatures: -40 to 70°C

Dot matrix (W x H): 128 x 36 dots

Dot size (W x H): 0.19 x 0.19mm

Dot pitch (W x H): 0.21 x 0.21mm

Aperture: 82%

Active area (W x H): 26.86 x 7.54mm

Panel size (W x H x D): 31 x 14.3 x 1mm

Module size (W x H x D): 31 x 26.3 x 1.23mm
