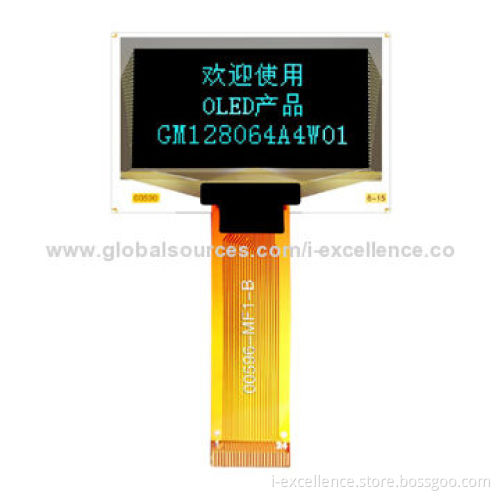

1.54-inch OLED Display Module with Blue Color, High-contrast Ratio and Low-power ConsumptionNew
- Payment Type:
- 30% Deposit and 70% T/T before Shipment
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | 30% Deposit and 70% T/T before Shipment |
|---|
- High-brightness, self-emission, high-contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low-power consumption
- Display color: yellow
- Driver IC: SSD1305Z
- Interface: 8-bit 8080, 8-bit 6800, SPI, I2C
- Wide range of operating temperature: -40 to 70°C
- Dot matrix (W x H): 128 x 64 dots
- Dot size (W x H): 0.254 x 0.254mm
- Dot pitch (W x H): 0.274 x 0.274mm
- Aperture rate: 86%
- Active area (W x H): 35.052 x 17.516mm
- Panel size (W x H): 42.04 x 27.22mm
- Module size: according to the annexed mechanical drawing
- Diagonal A/A size: 1.54 inches
- Module weight: TBD
-
