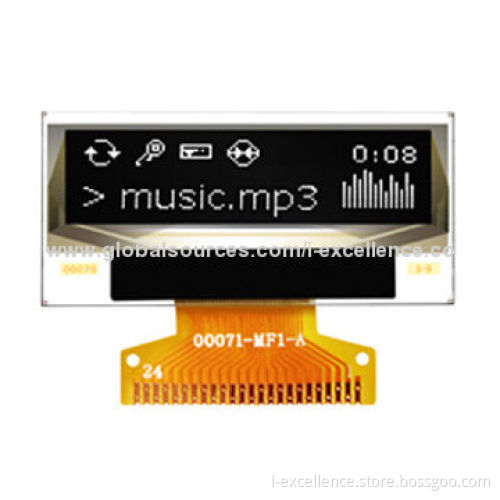

White Color OLED Display Module with 1.1-inch Diagonal A/A Size and 26.86 x 7.54mm Active AreaNew

Get Latest Price

Payment Type:: 30% Deposit and 70% T/T before Shipment

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	30% Deposit and 70% T/T before Shipment

Product Description

Overview:

OLED full color 128 x 36 dot matrix display module
Characteristics: high-brightness, self-emission, high-contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low power consumption

Features:

Display color: white
Dot matrix: 128 x 36
Driver IC: SH1106G
Interface: 8-bit 6800, 8-bit 8080, I2C, 4-wire SPI
Wide range of operating temperature: -40 to 70°C
Mechanical data:
- Dot matrix (W x H): 128 x 36mm
- Dot size (W x H): 0.19 x 0.19mm
- Dot pitch (W x H): 0.21 x 0.21mm
Aperture: 82%
Active area (W x H): 26.86 x 7.54mm
Panel size (W x H x D): 31 x 14.3 x 1.0mm
Module size (W x H x D): 31 x 26.3 x 1.23mm
Diagonal A/A size: 1.1-inch
Module weight: TBD

OLED full color 128 x 36 dot matrix display module

Characteristics: high-brightness, self-emission, high-contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low power consumption

Display color: white

Dot matrix: 128 x 36

Driver IC: SH1106G

Interface: 8-bit 6800, 8-bit 8080, I2C, 4-wire SPI

Wide range of operating temperature: -40 to 70°C

Mechanical data:
