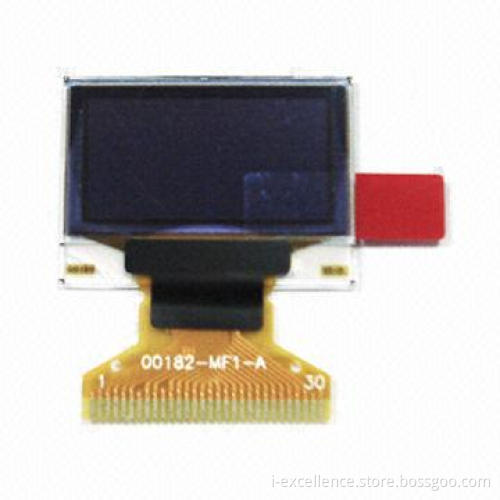

OLED Display Module with 0.96-inch Diagonal AA Size and 128 x 64 Dots Resolution, Available in White
  • OLED Display Module with 0.96-inch Diagonal AA Size and 128 x 64 Dots Resolution, Available in White
OLED Display Module with 0.96-inch Diagonal AA Size and 128 x 64 Dots Resolution, Available in White

OLED Display Module with 0.96-inch Diagonal AA Size and 128 x 64 Dots Resolution, Available in White

Payment Type:
30% Deposit, 70% T/T before Shipment
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: 30% Deposit, 70% T/T before Shipment
Product Description
Product Description
  • Specifications:
    • Display color: white
    • Dot matrix: 128 x 64 dots
    • Interface: 8-bit 6,800, 8-bit 8,080I2C, four-wire SPI
    • Wide range of operating temperatures: -40 to 70℃
    • Dot size (W x H): 0.15 x 0.155mm
    • Dot pitch (W x H): 0.17 x 0.175mm
    • Aperture rate: 78%
    • Active area (W x H): 21.74 x 11.18mm
    • Panel dimension (W x H x T): 26.7 x 19.2 x 1.05mm
    • Module dimension (W x H x T): 26.7 x 31.26 x 1.28mm
    • Diagonal A/A size: 0.96 inches
    • Module weight: 1.28g ± 10%
