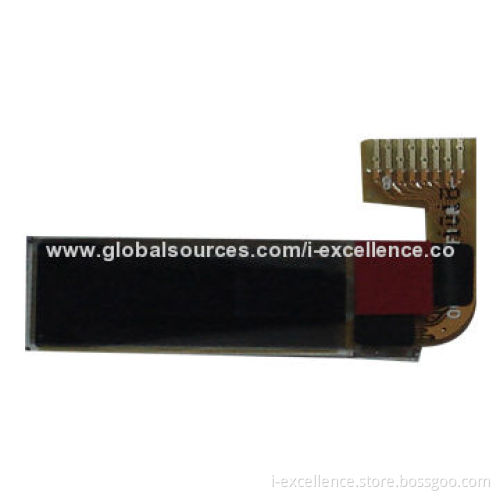

0.69-inch OLED Display Module with I2C Interface, Long Shape and 1.05mm Thickness

Get Latest Price

Payment Type:: 30% Deposit or 70% T/T before Shipment

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	30% Deposit or 70% T/T before Shipment

Product Description

Overview:

This is an OLED full color 96 x 16 dot matrix display module
Characteristics of this display module are high-brightness, self-emission, high-contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low-power consumption

Features:

Display color: white
Dot matrix: 96 x 16
Driver IC: SSD1306Z
Interface: I2C
Wide range of operating temperature: -40 to 70℃

Mechanical data:

Dot matrix (W x H): 96 x 16mm
Dot size (W x H): 0.16 x 0.18mm
Dot pitch (W x H): 0.18 x 0.20mm
Aperture: 80%
Active area (W x H): 17.26 x 3.18mm
Panel size (W x H x T): 26.3 x 8 x 1.05mm
Module size (W x H x T): 31.3 x 13.87 x 1.28mm
Diagonal A/A size: 0.69 inches
Module weight: 0.55g ±10%

This is an OLED full color 96 x 16 dot matrix display module

Characteristics of this display module are high-brightness, self-emission, high-contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low-power consumption

Display color: white

Dot matrix: 96 x 16

Driver IC: SSD1306Z

Interface: I2C

Wide range of operating temperature: -40 to 70℃

Dot matrix (W x H): 96 x 16mm

Dot size (W x H): 0.16 x 0.18mm

Dot pitch (W x H): 0.18 x 0.20mm

Aperture: 80%

Active area (W x H): 17.26 x 3.18mm

Panel size (W x H x T): 26.3 x 8 x 1.05mm

Module size (W x H x T): 31.3 x 13.87 x 1.28mm
