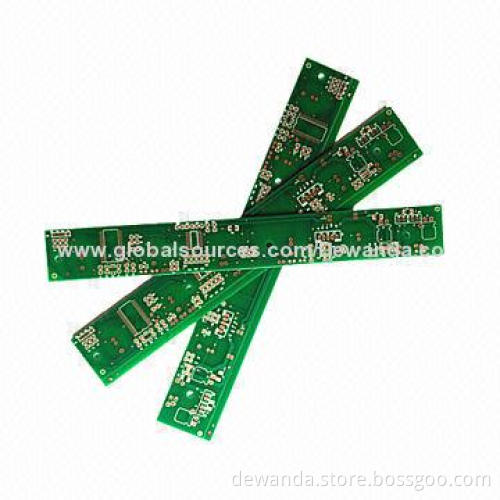

Multilayer PCB for Telecom, Industrial Control, Medical Instrument and Consumer Electronic products

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Manufacturing capability for PCB board:

Material types: CEM3, FR4, FR4TG170/TG180, halogen-free, rogers, Arlon, Taconic, Isola, PTFE and Bergquist
Surface treatments: HASL, HASL lead free, HAL, flash gold, immersion gold, OSP, gold finger plating, selective thick gold plating, immersion silver, immersion tin, carbon ink and peelable mask
Solder mask colors: Green/matt green/blue/yellow/white/black/red
Board size: 650 x 1,000mm
Board layer: 1L-30L
Board thicknesses: 0.2 to 3.2mm
Finished copper thicknesses: 0.5 to 3oz
Min-drilled hole size: 3mil (0.075mm)
Min-line width/line spacing: 3mil/3mil
Copper thickness in hole: >20um
Board thickness tolerance: ±10%
Outline tolerance: Routing: ±0.1mm, punching: ±0.1mm
Hole tolerance: PTH: ±0.076mm, NPTH: ±0.05mm
Impedance control tolerance: ±10%
Warp and twist: <0.75%
Tested by: Flying-probe tester, fixture tester, visual inspection
Special requirements: buried and blind visa, impedance control, thick Cu PCB, selectivity plating gold 30 micro inches
Profiling: punching, routing, VCUT, beveling

Material types: CEM3, FR4, FR4TG170/TG180, halogen-free, rogers, Arlon, Taconic, Isola, PTFE and Bergquist

Surface treatments: HASL, HASL lead free, HAL, flash gold, immersion gold, OSP, gold finger plating, selective thick gold plating, immersion silver, immersion tin, carbon ink and peelable mask

Solder mask colors: Green/matt green/blue/yellow/white/black/red

Board size: 650 x 1,000mm

Board layer: 1L-30L

Board thicknesses: 0.2 to 3.2mm

Finished copper thicknesses: 0.5 to 3oz

Min-drilled hole size: 3mil (0.075mm)

Min-line width/line spacing: 3mil/3mil

Copper thickness in hole: >20um

Board thickness tolerance: ±10%

Outline tolerance: Routing: ±0.1mm, punching: ±0.1mm

Hole tolerance: PTH: ±0.076mm, NPTH: ±0.05mm

Impedance control tolerance: ±10%
