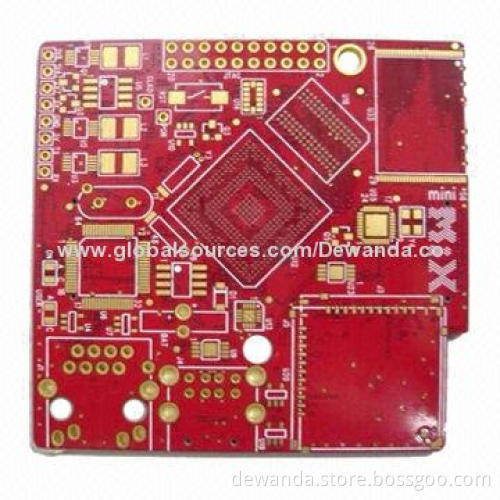

FR-4 Copper clad PCB with red solder mask

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Test solutions include:

Our quality processes include:

Layers: 4 layer

Base material: FR-4

Board thickness: 2mm

Min line width/space: 3mil

Min mechanical hole size: 0.2mm

Copper weight: 1 oz

Max aspect ratio: 12:1

Max board size: 650mm X1,200 mm

Min finished hole size: 0.02mm

Surface finish: immersion gold

Legend: white

Automatic optical inspection (AOI)

In-circuit test (ICT)

Reliability test

X-ray test

Analogue and digital function test

IQC: incoming quality control (incoming materials inspection)

First article inspection for every process

IPQC: in process quality control

QC: 100% test and inspection

QA: quality assurance based on QC inspection again
