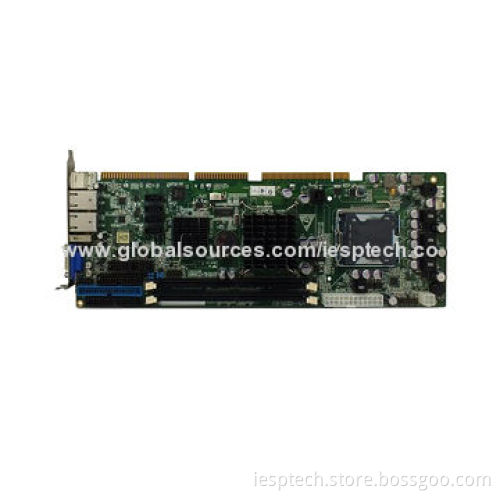

Full Size CPU Card, PICMG1.0 Single-board, Intel 945GC+ICH7 Chipset, 2xIED/FDD/2xGLAN/2xCOM/8xUSB

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Form factor: full size CPU card

Bus standard: PICMG1.0

CPU: supports LGA775 IntelCore 2 Duo, Pentium 4/D, Celeron D CPU

Chipset: Intel 945GC +ICH7

BIOS: 4MB AMI flash ROM

Watchdog: watchdog timer function, 1-255 levels

Graphic: Intel GMA950, VGA display output

System memory: 2 x 240-pin DDR2 slots

External interface:

I/O onboard:

OS: Windows 2000/XP/7

Power supply: 5V/12V, supports AT/ATX

Dimensions: 338.6mm (L) x 121.9mm (W)

Environment:

2 x RJ45 10/100/1000MB GLAN

1 x VGA display output

1 x USB2.0

1 x mini-DIN PS/2 for MS and KB

2 x RS232 (1 x RS232/422/485)

7 x USB2.0

1 x parallel port, supports SPP/EPP/ECP mode

4 x SATA

2 x IDE

1 x FDD

1 x 8-bit GPIO

1 x audio (line-in/line-out/microphone)

Operating temperature: -10°C-60°C

Operating humidity: 5% - 95% (non-condensing)
