Product Description

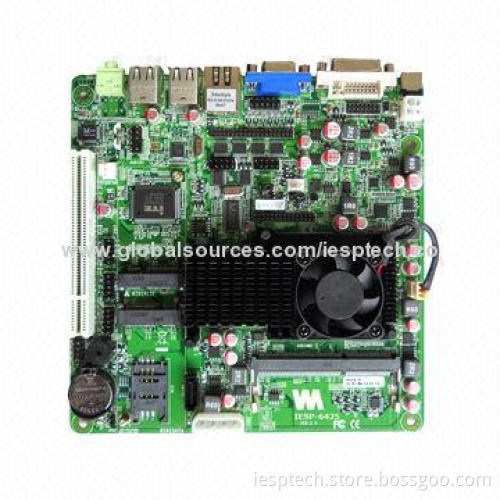

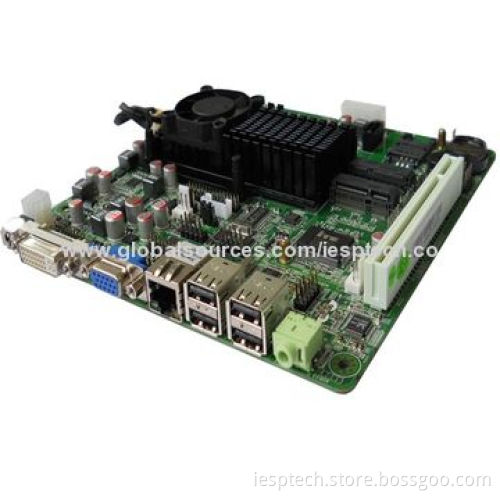

IESP-6425(LAN/2C/8U)

MINI-ITX Industrial CPU Board

System:

Processor: INTEL ATOM D2550(1.86GHz)
Chipset: Intel® NM10 Express chipset
Memory: 1 x 204pin DDR3 SO-DIMM, maximum up to 4GB
BIOS: AMI 16M BIOS, ACPI supported
Watch dog timer: 1-255 seconds/minute

Display:

Graphics Core: Integrated GMA3650 display core
Display memory: DVMT dynamic video memory
Display interface: DVI, LVDS, VGA multi-display interface
Dual-Display: supported

Ethernet:

Network chip: RTL 8105EL LAN controller
Network interface: 1 x RJ45

Audio:

Codec: Realtek ALC662 HD audio
Audio interface: line-out, mic-in

Storage interface:

SATA: 2 x SATAII, 1 x mini SATA

I/O interface (embedded):

PCI: 1 x PCI slot
GPIO: 8-channel programmable digital I/O
LVDS: 1 x LVDS 18/24 bit, Single channel
VGA: 1 x VGA expansion header
Power: 1 x 4pin Power connector
USB: 4 x USB2.0
COM: 2 x RS-232 (6 x RS-232 optional)
FAN: 3 x power connector for fan
Mini-PCIe: 1 x mini PCIe
Mini SATA: 1 x mini SATA
SIM: 1 x SIM

I/O interface (rear):

Power: 1 x power in interface
VGA: 1 x VGA
DVI: 1 x DVI
USB: 4 x USB2.0
Audio: 1 x audio out
LAN: 1 x RJ45

Other features:

Power supply: 12V DC in
Operating temperature: -20-60°C
Storage temperature: -40-80°C
Relative humidity: 0-95% RH relative humidity, non-condensing
Dimensions: 170 x 170mm

Processor: INTEL ATOM D2550(1.86GHz)

Chipset: Intel® NM10 Express chipset

Memory: 1 x 204pin DDR3 SO-DIMM, maximum up to 4GB

BIOS: AMI 16M BIOS, ACPI supported

Watch dog timer: 1-255 seconds/minute

Graphics Core: Integrated GMA3650 display core

Display memory: DVMT dynamic video memory

Display interface: DVI, LVDS, VGA multi-display interface

Dual-Display: supported

Network chip: RTL 8105EL LAN controller

Network interface: 1 x RJ45

Codec: Realtek ALC662 HD audio

Audio interface: line-out, mic-in

SATA: 2 x SATAII, 1 x mini SATA

PCI: 1 x PCI slot

GPIO: 8-channel programmable digital I/O

LVDS: 1 x LVDS 18/24 bit, Single channel

VGA: 1 x VGA expansion header

Power: 1 x 4pin Power connector

USB: 4 x USB2.0

COM: 2 x RS-232 (6 x RS-232 optional)

FAN: 3 x power connector for fan

Mini-PCIe: 1 x mini PCIe

Mini SATA: 1 x mini SATA

SIM: 1 x SIM

Power: 1 x power in interface

VGA: 1 x VGA

DVI: 1 x DVI

USB: 4 x USB2.0

Audio: 1 x audio out

LAN: 1 x RJ45

Power supply: 12V DC in

Operating temperature: -20-60°C

Storage temperature: -40-80°C

Relative humidity: 0-95% RH relative humidity, non-condensing

Dimensions: 170 x 170mm
