Product Description

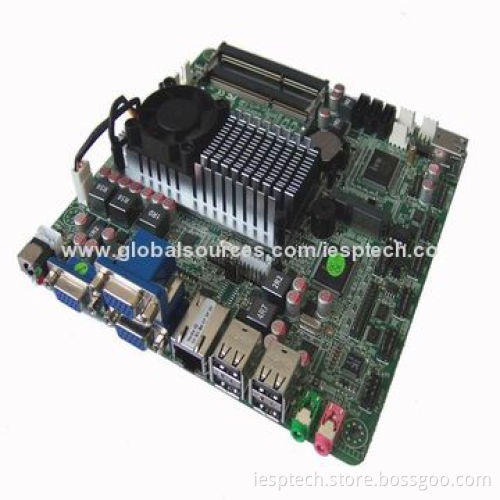

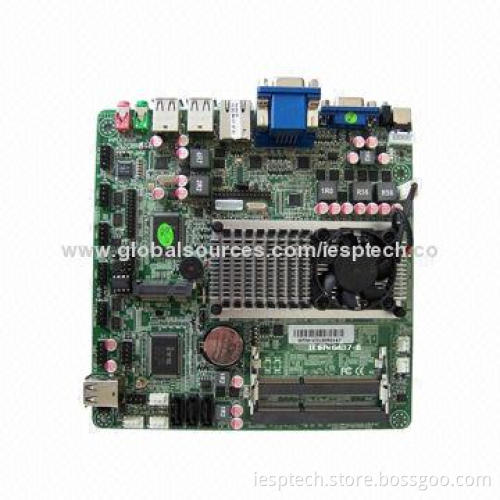

IESP-6437-B(LAN/4C/8U/3VGA)

MINI-ITX Industrial CPU Board

System:

Processor: Onboard Intel Celeron 1037U Dual Cores 1.8GHz CPU
Chipset: NM70 Chipset
Memory: 2 x 204pin DDR3 SO-DIMM, max. up to up to 16GB
BIOS: AMI 16M BIOS, ACPI supported
Watch dog timer: 1-65535 seconds/minute

Display:

Graphics core: Integrated HD Graphics display core
Display memory: DVMT dynamic video memory
Display interface: 3 x VGA, LVDS multi-display interface
Dual-Display: Supports

Ethernet:

Network chip: Realtek RTL8105EL LAN controller
Network interface: 1 x RJ45 LAN

Audio:

Codec: Realtek ALC662 HD audio
Audio interface: line-out, mic-in

Storage interface:

SATA: 3 x SATA
I/O interface (embedded)
GPIO: 8-channel programmable digital I/O
Power: 1 x 4-PIN DC in interface
LVDS: 1 x LVDS 18/24 bit, Dual channels
USB: 4 x USB2.0
COM: 4x RS-232
Parallel port: 1 x Parallel port
Mini SATA: 1 x mini SATA

I/O interface (rear):

Power: 1 x power in interface
VGA: 3 x VGA
USB: 4 x USB2.0
LAN: 1 x RG45
Audio: 1 x audio(line-out and mic in)

Other features:

Power supply: 12V DC IN
Operating temperature: -20 - 60°C
Storage temperature: -40 - 80°C
Relative humidity: 0-95% RH relative humidity, non-condensing
Dimensions: 170 x 170mm

Processor: Onboard Intel Celeron 1037U Dual Cores 1.8GHz CPU

Chipset: NM70 Chipset

Memory: 2 x 204pin DDR3 SO-DIMM, max. up to up to 16GB

BIOS: AMI 16M BIOS, ACPI supported

Watch dog timer: 1-65535 seconds/minute

Graphics core: Integrated HD Graphics display core

Display memory: DVMT dynamic video memory

Display interface: 3 x VGA, LVDS multi-display interface

Dual-Display: Supports

Network chip: Realtek RTL8105EL LAN controller

Network interface: 1 x RJ45 LAN

Codec: Realtek ALC662 HD audio

Audio interface: line-out, mic-in

SATA: 3 x SATA

I/O interface (embedded)

GPIO: 8-channel programmable digital I/O

Power: 1 x 4-PIN DC in interface

LVDS: 1 x LVDS 18/24 bit, Dual channels

USB: 4 x USB2.0

COM: 4x RS-232

Parallel port: 1 x Parallel port

Mini SATA: 1 x mini SATA

Power: 1 x power in interface

VGA: 3 x VGA

USB: 4 x USB2.0

LAN: 1 x RG45

Audio: 1 x audio(line-out and mic in)

Power supply: 12V DC IN

Operating temperature: -20 - 60°C

Storage temperature: -40 - 80°C

Relative humidity: 0-95% RH relative humidity, non-condensing

Dimensions: 170 x 170mm
