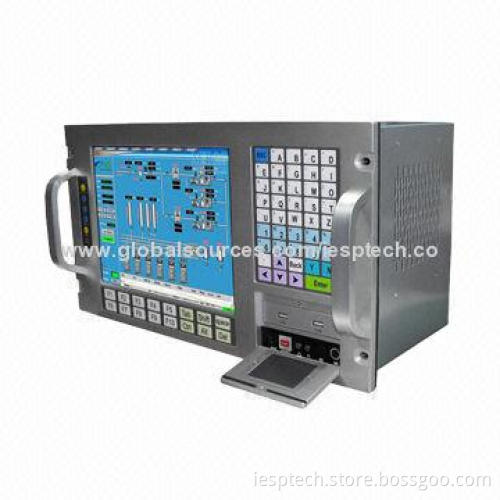

Industrial Computer, All-in-one, 6U Rack Mount, 12.1" LCD/Touch Screen/LGA775 CPU/2GB/320GB, OEM/ODM

Industrial Computer, All-in-one, 6U Rack Mount, 12.1" LCD/Touch Screen/LGA775 CPU/2GB/320GB, OEM/ODM

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Mechanical:

Front panel: aluminum panel, meets with NEMA4, IP65
Chassis: heavy steel
Dimensions: (W) 482 x (D) 226 x (H) 266mm
Mount: rack
Color: silvery white
Weight: about 16kg

System data:

CPU board: industrial full size CPU card
CPU: supports LGA775, Intel Core 2 Quad/Core 2 Duo
Chipset: Intel G41 +ICH7R
Watch dog: 256-level programmable counter
Memory capacity: 2GB DDR3 system memory (maximum up to 4GB)
Storage: 320GB HDD (3 x 3.5” HDD driver bay)
Expansion: 4 x PCI, 3 x ISA and 2 x PICMG1.0
Cooling system: 2 x fans

LCD:

Display size: 12.1" TFT LCD
Aspect ratio: 4:3
Resolution: 1024 x 768 pixels
Luminance: 420cd/m²
Contrast ratio: 550:1
Backlight: LED
Colors: 16.2M colors (8-bit RGB)
OSD: 1 x OSD for LCD

Touch screen:

Interface: USB/COM
Light transmission: 80%
Type: 5-wire resistive touch screen

Keyboard: 1 x full function membrane keyboard

Mouse: 1 x TouchPad

Front I/O and LEDs:

USB: 2 x USB 2.0
PS/2: 1 x PS/2 for KB
LEDs: 1 x HDD LED and 1 x power LED
1 x power on button
1 x reset button

Internal I/O:

2 x RS232 (1 x RS232/422/485)
2 x USB2.0
2 x SATA II
1 x parallel port, supports SPP/EPP/ECP mode
1 x IDE

Rear I/O:

1 x RJ45 Intel 85574L GLAN
1 x VGA, display output
1 x mini DIN PS/2 for MS and KB
1 x USB 2.0

Power supply:

Power on mode: AT/ATX
Power supply: 300W/2U/ATX industrial
Input requirements: 100 to 250V AC at 47 to 63Hz

Environmental:

Operating temperature: 0 to 60°C (32 to 140°F)
Relative humidity range: 0 to 90%, non-condensing
Storage temperature: -20 to 70°C (-4 to 158°F)

Optional:

Customized chassis colors and logos are accepted

Front panel: aluminum panel, meets with NEMA4, IP65

Chassis: heavy steel

Dimensions: (W) 482 x (D) 226 x (H) 266mm

Mount: rack

Color: silvery white

Weight: about 16kg

CPU board: industrial full size CPU card

CPU: supports LGA775, Intel Core 2 Quad/Core 2 Duo

Chipset: Intel G41 +ICH7R

Watch dog: 256-level programmable counter

Memory capacity: 2GB DDR3 system memory (maximum up to 4GB)

Storage: 320GB HDD (3 x 3.5” HDD driver bay)

Expansion: 4 x PCI, 3 x ISA and 2 x PICMG1.0

Cooling system: 2 x fans

Display size: 12.1" TFT LCD

Aspect ratio: 4:3

Resolution: 1024 x 768 pixels

Luminance: 420cd/m²

Contrast ratio: 550:1

Backlight: LED

Colors: 16.2M colors (8-bit RGB)

OSD: 1 x OSD for LCD

Interface: USB/COM

Light transmission: 80%

Type: 5-wire resistive touch screen

USB: 2 x USB 2.0

PS/2: 1 x PS/2 for KB

LEDs: 1 x HDD LED and 1 x power LED

1 x power on button

1 x reset button

2 x RS232 (1 x RS232/422/485)

2 x USB2.0

2 x SATA II

1 x parallel port, supports SPP/EPP/ECP mode

1 x IDE

1 x RJ45 Intel 85574L GLAN

1 x VGA, display output

1 x mini DIN PS/2 for MS and KB

1 x USB 2.0

Power on mode: AT/ATX

Power supply: 300W/2U/ATX industrial

Input requirements: 100 to 250V AC at 47 to 63Hz

Operating temperature: 0 to 60°C (32 to 140°F)

Relative humidity range: 0 to 90%, non-condensing

Storage temperature: -20 to 70°C (-4 to 158°F)

Customized chassis colors and logos are accepted
