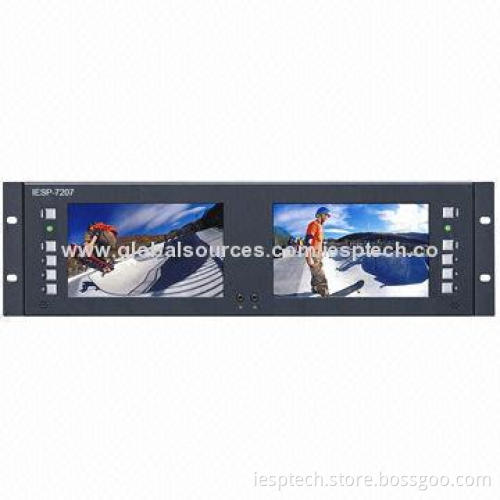

2 x 7 inch Rack Mount Industrial LCD Monitor, Touchscreen, AV/TV in Optional, OEM/DOM

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Mechanism:

Front panel: aluminum front panel
Ingress protection meet with NEMA4, IP65
Chassis: heavy steel chassis with SECC
Color: matte black

System information:

LCD: 2 x 7" TFT LCD industrial grade
Input signal: RGB (DB-15 VGA interface)
Keys: 2 x OSD keyboard for LCD adjustment (multi-language)
Reliability: MTBF 50,000hrs; MTTR 0.5hrs
Mounting: rack mounting
Power input: 1 x Phoenix terminal DC in
Shock: 10g peak acceleration (11 ms duration)
Vibration: 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
Dimensions (W x H x D): 482.6 x 131 x 66mm
Weight: about 3.5kg

LCD:

LCD size: 7" TFT LCD
Aspect ratio: 16:9
Resolution: 800 x 480
Luminance: 200cd/m²
Contrast ratio: 400:1
Backlight: LED
Colors: 262K colors

Touchscreen:

Interface: RS-232 (USB Interface Optional)
Lifespan: 10 million times/point
Light transmission: 80 %
Type: analog resistive touchscreen

I/O ports:

1 x DB-15 VGA video in
1 x COM (or 1 x USB, touchscreen)
1 x power in interface

Power:

System power requirement: 12V DC power input
Power adapter:
- Input: 100-250V AC/47-63Hz
- Output: 24W adapter (12V at 2A)

Environmental:

Operating temperature: -10-60°C (14-140°F)
Relative humidity: 0-90% relative humidity, non-condensing
Storage temperature: -20-70°C (-4-158°F)

Options:

Strengthen tempered glass: optional
Audio in and 2 x 2W speaker out: optional
DVI/HDMI video in: optional
AV/TV in: optional
OEM/ODM: optional

Front panel: aluminum front panel

Ingress protection meet with NEMA4, IP65

Chassis: heavy steel chassis with SECC

Color: matte black

LCD: 2 x 7" TFT LCD industrial grade

Input signal: RGB (DB-15 VGA interface)

Keys: 2 x OSD keyboard for LCD adjustment (multi-language)

Reliability: MTBF 50,000hrs; MTTR 0.5hrs

Mounting: rack mounting

Power input: 1 x Phoenix terminal DC in

Shock: 10g peak acceleration (11 ms duration)

Vibration: 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration

Dimensions (W x H x D): 482.6 x 131 x 66mm

Weight: about 3.5kg

LCD size: 7" TFT LCD

Aspect ratio: 16:9

Resolution: 800 x 480

Luminance: 200cd/m²

Contrast ratio: 400:1

Backlight: LED

Colors: 262K colors

Interface: RS-232 (USB Interface Optional)

Lifespan: 10 million times/point

Light transmission: 80 %

Type: analog resistive touchscreen

1 x DB-15 VGA video in

1 x COM (or 1 x USB, touchscreen)

1 x power in interface

System power requirement: 12V DC power input

Power adapter:

Input: 100-250V AC/47-63Hz
Output: 24W adapter (12V at 2A)

Input: 100-250V AC/47-63Hz

Output: 24W adapter (12V at 2A)

Operating temperature: -10-60°C (14-140°F)

Relative humidity: 0-90% relative humidity, non-condensing

Storage temperature: -20-70°C (-4-158°F)

Strengthen tempered glass: optional

Audio in and 2 x 2W speaker out: optional

DVI/HDMI video in: optional

AV/TV in: optional

OEM/ODM: optional
