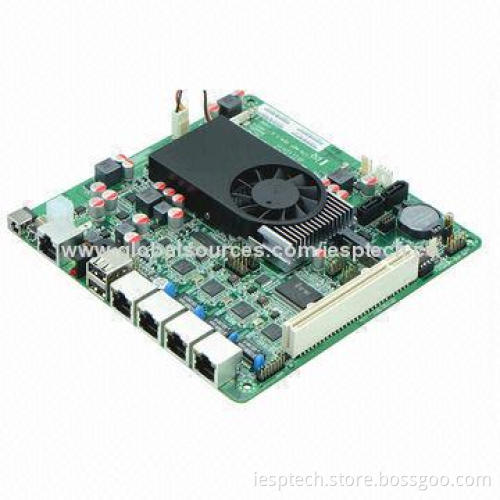

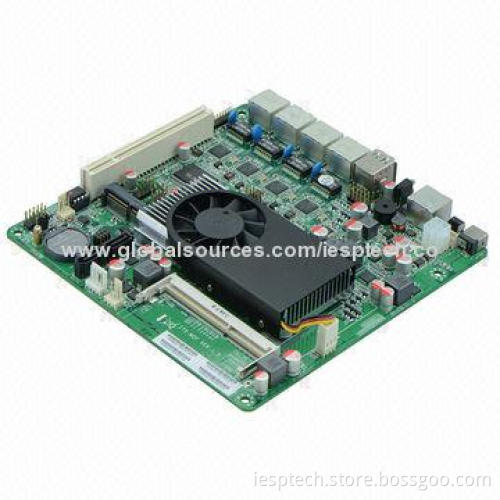

Firewall Motherboard, Onboard D2550 CPU, 4 x RJ45 GLAN, 4 x USB2.0, VGA, 12V DC-in

Firewall Motherboard, Onboard D2550 CPU, 4 x RJ45 GLAN, 4 x USB2.0, VGA, 12V DC-in

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

System:

Processor: Intel ATOM D2550 (1.86GHz)
Chipset: Intel NM10 express
Memory: 1 x SO DDRIII slot, maximum supports up to 4GB
BIOS: AMI 16MB, ACPI supported
Watch dog timer: 0 to 255 seconds/minute

Display:

Graphics core: integrated GMA3650 display core
Display interface: VGA

Ethernet:

GLAN: 4 x Intel 82583V controller, supports WOL
Network interface: 4 x RJ45 GLAN

Storage interface:

SATA: 2 x SATA

I/O interface (embedded):

JVGA: 1 x 2*5-pin JVGA
USB: 4 x USB 2.0
COM: 1 x COM
FAN: 1 x CPU, 2 x system
LAN-LED: 1 x 8-pin LAN-LED
GPIO: 4 x DI, 4 x DO

I/O interface (rear):

Power supply: 1 x power-in interface
VGA: 1 x VGA
USB: 2 x USB 2.0
COM: 1 x COM CISCO standard
LAN: 4 x RJ45

Other features:

Power supply: 12V DC-in
Operating temperature: -10 to 60°C
Storage temperature: -20 to 70°C
Relative humidity: 0 to 95% RH, non-condensing
Dimensions: 170 x 170mm

Processor: Intel ATOM D2550 (1.86GHz)

Chipset: Intel NM10 express

Memory: 1 x SO DDRIII slot, maximum supports up to 4GB

BIOS: AMI 16MB, ACPI supported

Watch dog timer: 0 to 255 seconds/minute

Graphics core: integrated GMA3650 display core

Display interface: VGA

GLAN: 4 x Intel 82583V controller, supports WOL

Network interface: 4 x RJ45 GLAN

SATA: 2 x SATA

JVGA: 1 x 2*5-pin JVGA

USB: 4 x USB 2.0

COM: 1 x COM

FAN: 1 x CPU, 2 x system

LAN-LED: 1 x 8-pin LAN-LED

GPIO: 4 x DI, 4 x DO

Power supply: 1 x power-in interface

VGA: 1 x VGA

USB: 2 x USB 2.0

COM: 1 x COM CISCO standard

LAN: 4 x RJ45

Power supply: 12V DC-in

Operating temperature: -10 to 60°C

Storage temperature: -20 to 70°C

Relative humidity: 0 to 95% RH, non-condensing

Dimensions: 170 x 170mm
