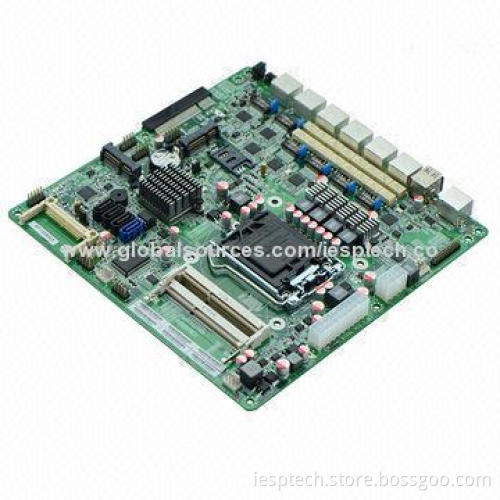

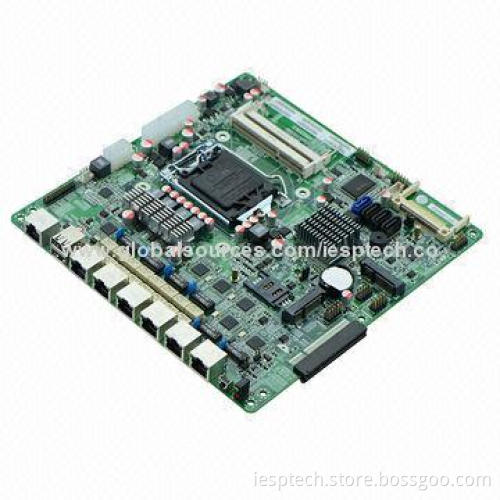

Firewall Motherboard, Intel i7/i5/i3 CPU, 6 x RJ45 GLAN, 6 x USB 2.0, VGA, High Performance

Firewall Motherboard, Intel i7/i5/i3 CPU, 6 x RJ45 GLAN, 6 x USB 2.0, VGA, High Performance

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

System:

Processor: LGA1155 Intel Core i3/i5/i7 32nm/22nm
Chipset: Intel B75 express
Memory: 2* DDR3 SO-DIMM socket, maximum up to 16GB
BIOS: 32MB SMT flash ROM
Watch dog timer: support

Display:

Graphics core: Integrated HD display core
Display interface: VGA

Ethernet:

Network chip: 6 x RJ45 (Intel 82574L controller)
BYPASS: LAN1 to LAN4 support

Storage interface:

1 x SATAIII, 3 x SATAII
1 x mini-SATA, 1 x CF slot

I/O interface (embedded):

GPIO: 4 x DI, 4 x DO
LAN-LED: 2 x 13-pin
USB: 4 x USB 2.0
COM: 1 x RS232
PS/2: 1 x PS/2 for KB and MS
FAN: 2 x CPU/SYS chassis FAN connectors

I/O interface (rear):

Power: 1 x 20-pin ATX power-in interface
VGA: 1 x VGA
USB: 2 x USB 2.0
LAN: 6 x RJ45 GLAN
COM: 1 x COM CISCO standard

Other features:

Power supply: 20-pin ATX power-in
Operating temperature: -10 to 60°C
Storage temperature: -20 to 70°C
Relative humidity: 0 to 95% RH, non-condensing
Dimensions: 220 x 220mm

Processor: LGA1155 Intel Core i3/i5/i7 32nm/22nm

Chipset: Intel B75 express

Memory: 2* DDR3 SO-DIMM socket, maximum up to 16GB

BIOS: 32MB SMT flash ROM

Watch dog timer: support

Graphics core: Integrated HD display core

Display interface: VGA

Network chip: 6 x RJ45 (Intel 82574L controller)

BYPASS: LAN1 to LAN4 support

1 x SATAIII, 3 x SATAII

1 x mini-SATA, 1 x CF slot

GPIO: 4 x DI, 4 x DO

LAN-LED: 2 x 13-pin

USB: 4 x USB 2.0

COM: 1 x RS232

PS/2: 1 x PS/2 for KB and MS

FAN: 2 x CPU/SYS chassis FAN connectors

Power: 1 x 20-pin ATX power-in interface

VGA: 1 x VGA

USB: 2 x USB 2.0

LAN: 6 x RJ45 GLAN

COM: 1 x COM CISCO standard

Power supply: 20-pin ATX power-in

Operating temperature: -10 to 60°C

Storage temperature: -20 to 70°C

Relative humidity: 0 to 95% RH, non-condensing

Dimensions: 220 x 220mm
