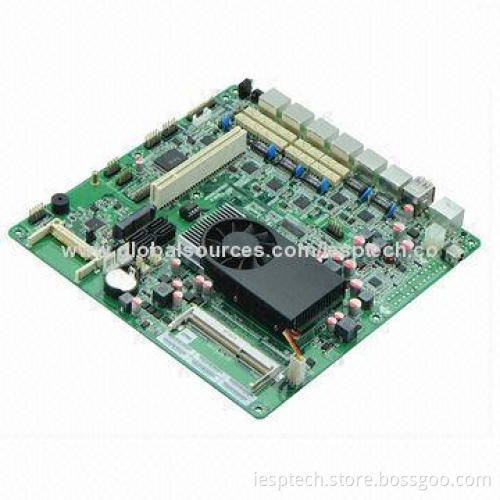

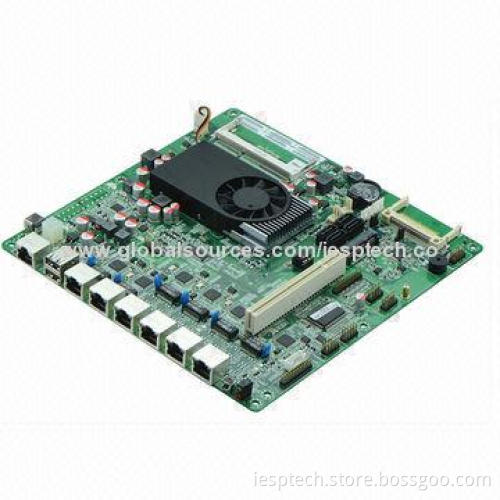

Firewall Motherboard, Onboard D2550 CPU, 6 x RJ45 GLAN, 6 x USB 2.0, VGA, 12V DC-in

Firewall Motherboard, Onboard D2550 CPU, 6 x RJ45 GLAN, 6 x USB 2.0, VGA, 12V DC-in

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

System:

Processor: Intel Atom D2550 (1.86GHz)
Chipset: Intel ICH10R
Memory: 1 x SO DDRIII slot, maximum supports up to 4GB
BIOS: AMI 16MB, ACPI supported
Watch dog timer: 0 to 255 seconds/minute

Display:

Graphics core: Integrated GMA3650 display core
Display interface: VGA

Ethernet:

GLAN: 6 x RJ45 GLAN (Intel 82583V controller)
BYPASS: LAN1 to LAN4 supported

Storage interface: 4 x SATAII, 1 x CF slot

I/O interface (embedded):

JVGA: 1 x 2*5-pin
USB: 4 x USB 2.0
COM: 1 x COM
FAN: 1 x CPU, 2 x system FAN
LPT: 1 x LPT
PS/2: 1 x PS/2 for KB and MS
LAN-LED: 2 x 13-pin LAN-LED
GPIO: 4 x DI, 4 x DO
Expansion: 1 x PCI slot

I/O interface (rear):

Power: 1 x power-in interface
VGA: 1 x VGA
USB: 2 x USB 2.0
COM: 1 x COM CISCO standard
LAN: 6 x RJ45

Other features:

Power supply: 12V DC-in
Operating temperature: -10 to 60°C
Storage temperature: -20 to 70°C
Relative humidity: 0 to 95% RH, non-condensing
Dimensions: 220 x 220mm

Processor: Intel Atom D2550 (1.86GHz)

Chipset: Intel ICH10R

Memory: 1 x SO DDRIII slot, maximum supports up to 4GB

BIOS: AMI 16MB, ACPI supported

Watch dog timer: 0 to 255 seconds/minute

Graphics core: Integrated GMA3650 display core

Display interface: VGA

GLAN: 6 x RJ45 GLAN (Intel 82583V controller)

BYPASS: LAN1 to LAN4 supported

JVGA: 1 x 2*5-pin

USB: 4 x USB 2.0

COM: 1 x COM

FAN: 1 x CPU, 2 x system FAN

LPT: 1 x LPT

PS/2: 1 x PS/2 for KB and MS

LAN-LED: 2 x 13-pin LAN-LED

GPIO: 4 x DI, 4 x DO

Expansion: 1 x PCI slot

Power: 1 x power-in interface

VGA: 1 x VGA

USB: 2 x USB 2.0

COM: 1 x COM CISCO standard

LAN: 6 x RJ45

Power supply: 12V DC-in

Operating temperature: -10 to 60°C

Storage temperature: -20 to 70°C

Relative humidity: 0 to 95% RH, non-condensing

Dimensions: 220 x 220mm
