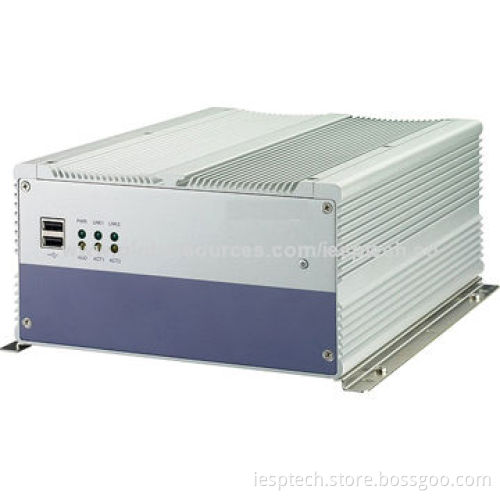

Fanless BOX PC, P7550 CPU, GM45 Chipset, 2GB DDR3/320GB HDD, 2xPCI, 12-24V DC-in, Rugged Design

Fanless BOX PC, P7550 CPU, GM45 Chipset, 2GB DDR3/320GB HDD, 2xPCI, 12-24V DC-in, Rugged Design

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Mechanism:
- Full aluminum embedded box w/radiating fin in top side
- Color: aluminum natural color

System information:

Processor: onboard INTEL Core 2 Duo P7550 CPU
Chipset: Intel® GM45+ ICH9M chipset
BIOS: 8MB flash AMI BIOS
Watch dog: 1-65535 seconds/minute
Graphic: integrated GMAX4500M HD display core
Display interface: VGA
System memory: 2GB DDR3 system memory
System storage: 320GB 2.5" SATAII HDD

Front I/O:

6 x RS-232 (optional)
2 x USB2.0
1 x HDD LED
1 x reset button
1 x power switch w/LED

Rear I/O:

Power: 1 x power in interface
Audio: 1 x line out
Audio: 1 x Mic in
VGA: 1 x VGA
USB: 4 x USB2.0
LAN: 2 x RJ45 GLAN
2 x PCI slot

Power requirement: +12-24V DC in

OS: supports Windows 7/Windows XP/Windows XP embedded/Linux

Dimensions: (L) 268 x (W) 195 x (H) 101mm

Mounting: wall ounting/desktop

Environment:

Operating temperature: -20 to 60°C
Operating humidity: 5 to 90% RH @ 50°C, non-condensing
Storage temperature: -40 to 80°C
Storage humidity: 5 to 95% RH, non-condensing

Options:

8 x DI/O connector-optional
Wi-Fi-optional
Provide customized services

Mechanism:

Full aluminum embedded box w/radiating fin in top side
Color: aluminum natural color

Full aluminum embedded box w/radiating fin in top side

Color: aluminum natural color

Processor: onboard INTEL Core 2 Duo P7550 CPU

Chipset: Intel® GM45+ ICH9M chipset

BIOS: 8MB flash AMI BIOS

Watch dog: 1-65535 seconds/minute

Graphic: integrated GMAX4500M HD display core

Display interface: VGA

System memory: 2GB DDR3 system memory

System storage: 320GB 2.5" SATAII HDD

6 x RS-232 (optional)

2 x USB2.0

1 x HDD LED

1 x reset button

1 x power switch w/LED

Power: 1 x power in interface

Audio: 1 x line out

Audio: 1 x Mic in

VGA: 1 x VGA

USB: 4 x USB2.0

LAN: 2 x RJ45 GLAN

2 x PCI slot

Operating temperature: -20 to 60°C

Operating humidity: 5 to 90% RH @ 50°C, non-condensing

Storage temperature: -40 to 80°C

Storage humidity: 5 to 95% RH, non-condensing

8 x DI/O connector-optional

Wi-Fi-optional

Provide customized services
