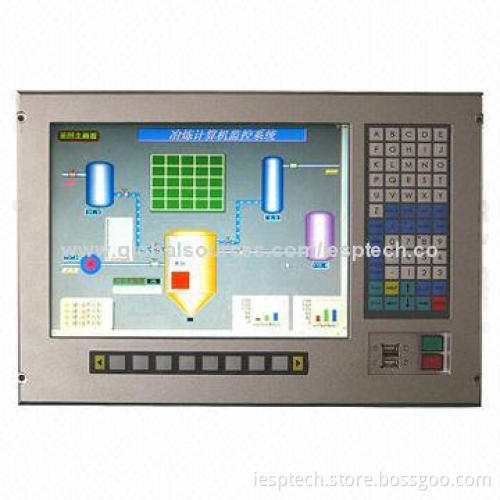

Industrial Computer, 12.1" LCD Embedded Workstation, D2550 CPU/6COM/6USB/2G LAN/5-wire Touch Screen

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

19" rack mount panel workstation

Mechanical:

Front panel: aluminum, meets with NEMA4 IP65
Chassis: heavy steel
Dimensions: 482x266x156mm
Mounting: rack
Color: silver
Weight: about 10kg

System data:

CPU: Intel Atom D2550 1.86GHz/1MB
Chipset: Intel® NM10
BIOS: AMI BIOS, ACPI supported
Watchdog: programmable counter from 1-255
Graphic: Intel GMA3650, shared system memory
Memory: 2GB DDR3 system memory
Storage: 320GB 2.5" HDD
Expansion: 1 x mini-PCIe slot and 1 x mini-SATA
Operating system: Windows XP and Win 7
Cooling: 1 x CPU fan

LCD:

LCD size: 12.1" TFT LCD
Aspect ratio: 4:3
Resolution: 1024 x 768p
Luminance: 420cd/m²
Contrast ratio: 550:1
Backlight: LED
Colors: 16.2M

Touch screen:

Interface: USB/COM
Light transmission: 80%
Type: 5-wire resistive touch screen

KB & MS:

Keyboard: 1 x full function membrane

Front I/O:

USB: 2 x USB 2.0
Power button: 1 x power-on button
Reset button: 1 x reset button

Rear I/O:

Ethernet: 1 x RJ45 (RTL8105E-VL Ethernet controller)
VGA: 1 x VGA
DVI: 1 x DVI
Audio: 1 x audio (line-out)
USB: 4 x USB 2.0
Serial port: 4 x RS232
Power in: 1 x AC in interface

Power:

System power requirement:
- Inputs: 100-250V AC/47-63Hz

Environmental:

Operating temperatures: 0 to 60°C (32 to 140°F)
Relative humidity range: 0 to 90%, non-condensing
Storage temperatures: -20 to 70°C (-4 to 158°F)

Optional:

USB port: multi USB ports optional (maximum 6 x USB)
Storage: 1 x 2.5" SSD optional
Wi-Fi: optional
Expansion: 1 x PCI optional
Chassis color: provides customized services
Logo: provides customized services

Front panel: aluminum, meets with NEMA4 IP65

Chassis: heavy steel

Dimensions: 482x266x156mm

Mounting: rack

Color: silver

Weight: about 10kg

CPU: Intel Atom D2550 1.86GHz/1MB

Chipset: Intel® NM10

BIOS: AMI BIOS, ACPI supported

Watchdog: programmable counter from 1-255

Graphic: Intel GMA3650, shared system memory

Memory: 2GB DDR3 system memory

Storage: 320GB 2.5" HDD

Expansion: 1 x mini-PCIe slot and 1 x mini-SATA

Operating system: Windows XP and Win 7

Cooling: 1 x CPU fan

LCD size: 12.1" TFT LCD

Aspect ratio: 4:3

Resolution: 1024 x 768p

Luminance: 420cd/m²

Contrast ratio: 550:1

Backlight: LED

Colors: 16.2M

Interface: USB/COM

Light transmission: 80%

Type: 5-wire resistive touch screen

Keyboard: 1 x full function membrane

USB: 2 x USB 2.0

Power button: 1 x power-on button

Reset button: 1 x reset button

Ethernet: 1 x RJ45 (RTL8105E-VL Ethernet controller)

VGA: 1 x VGA

DVI: 1 x DVI

Audio: 1 x audio (line-out)

USB: 4 x USB 2.0

Serial port: 4 x RS232

Power in: 1 x AC in interface

System power requirement:

Inputs: 100-250V AC/47-63Hz

Inputs: 100-250V AC/47-63Hz

Operating temperatures: 0 to 60°C (32 to 140°F)

Relative humidity range: 0 to 90%, non-condensing

Storage temperatures: -20 to 70°C (-4 to 158°F)

USB port: multi USB ports optional (maximum 6 x USB)

Storage: 1 x 2.5" SSD optional

Wi-Fi: optional

Expansion: 1 x PCI optional

Chassis color: provides customized services

Logo: provides customized services
