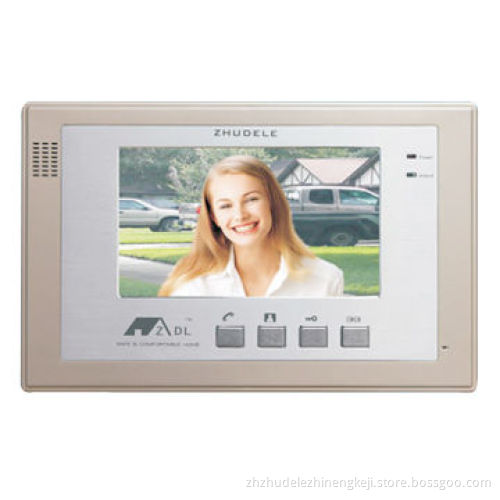

7-inch Indoor monitor, measures 258x180x33mm

Get Latest Price

Payment Type:: T/T, L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C

Product Description

Multi-home: video door phone

Color video door phone

From 5 to 9,999 homes on a single outdoor station

Wiring:

Monitor/Decoder: 8-wire connector, CAT-5, maximum 100m
Outdoor station/Decoder: 8-wire connector, CAT-5, maximum 100m
Station/Power supply: 2x1.0mm² - maximum 50m
Decoder/Power supply: 2x1.0mm² - maximum 50m

4.3-inch, 7-inch and 8.3-inch handsfree monitors:

Color: white
Screen size: 4.3-inch/7-inch/8.3-inch
Number of ring tones: 8 melodies
Settings buttons (volume, brightness, contrast and color)
Control button for e-lock
Mounting: wall-mounted
Surface or flush-mounted

Outdoor station:

Color: silver/golden
Rain-shield included with model ZDL-980C72R
Lens: 92°, infrared diodes, CCD 580TVL camera
Keypad: used to select a flat and to operate access controls
LCD screen: displays the number of the flats

Power supply:

Input: 230V
Output: 18V
Emergency battery: 3 (not included)

Decoder:

Number of ports: 4, for 4 monitors or 8, for 8 monitors

Options:

Additional monitor (up to 9,999 homes)
Additional decoder (1 decoder for 4/8 monitors)
Additional power supply for 1+ monitors (capable of powering 20 monitors)

Monitor/Decoder: 8-wire connector, CAT-5, maximum 100m

Outdoor station/Decoder: 8-wire connector, CAT-5, maximum 100m

Station/Power supply: 2x1.0mm² - maximum 50m

Decoder/Power supply: 2x1.0mm² - maximum 50m

Color: white

Screen size: 4.3-inch/7-inch/8.3-inch

Number of ring tones: 8 melodies

Settings buttons (volume, brightness, contrast and color)

Control button for e-lock

Mounting: wall-mounted

Surface or flush-mounted

Color: silver/golden

Rain-shield included with model ZDL-980C72R

Lens: 92°, infrared diodes, CCD 580TVL camera

Keypad: used to select a flat and to operate access controls

LCD screen: displays the number of the flats

Input: 230V

Output: 18V

Emergency battery: 3 (not included)

Number of ports: 4, for 4 monitors or 8, for 8 monitors

Additional monitor (up to 9,999 homes)

Additional decoder (1 decoder for 4/8 monitors)

Additional power supply for 1+ monitors (capable of powering 20 monitors)
