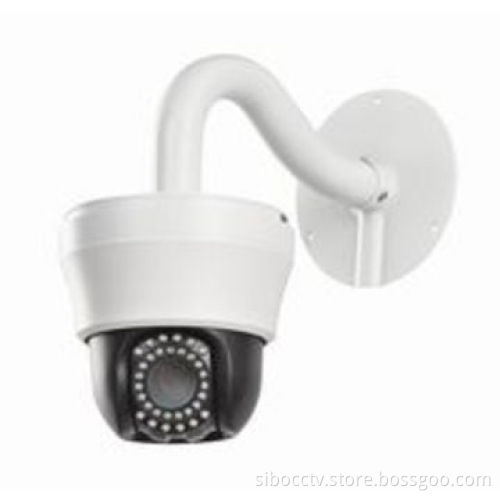

Promotion CCTV 10X CMOS 800TVL IR mini PTZ camera

Promotion CCTV 10X CMOS 800TVL IR mini PTZ camera

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

4" super mini configuration
Pan: 360°
Tilt: 180 or 90°
4-cruise, power-off protection
256 preset
10 x optical zoom
30-piece of IR LED

Features:

Image sensor: CMOS 800TVL
Signal model: PAL/NTSC
Horizontal resolution: 800TVL
Effective pixel:
- P: (H) 967 * 494p
- N: (H) 960 * (V) 582p
Minimum illumination: color to B/W
- Color: 0.01lux
- B/W: 0.001lux
S/N radio: >60dB (enhanced)
Backlight compensation: on/off
White balance: auto
Electronic shutter range: 1/50 to 1/12,000 seconds
Focus length: 5 to 55mm
Optical focus: 10X
Focus: auto/manual, takes high-performance DSP to realize complete digit and ultra-high speed focus function
Presets: 256
Patrol track: 4 groups, each can record 200 actions
Cruise track: total 30 presets can join cruise, can set the presets residence time
Other scan: supports horizontal scan, deuce area scan and scan random
Rotation range: horizontal: 360° unlimited rotation, vertical: 90° and auto reversal
Rotation speed: horizontal and vertical, minimum 0.01° and maximum 30°/S
Communications: RS-485, PELCO D and PELCO P
OSD: supported
Temperature control: built-in
Power supply: 12V DC/2A
Material: aluminum shell
Working environment range: -20 to 50°C (selected temperature control accessories), <95% RH
Warranty: 2 years

4" super mini configuration

Pan: 360°

Tilt: 180 or 90°

4-cruise, power-off protection

256 preset

10 x optical zoom

30-piece of IR LED

Image sensor: CMOS 800TVL

Signal model: PAL/NTSC

Horizontal resolution: 800TVL

Effective pixel:

P: (H) 967 * 494p
N: (H) 960 * (V) 582p

Minimum illumination: color to B/W

Color: 0.01lux
B/W: 0.001lux

S/N radio: >60dB (enhanced)

Backlight compensation: on/off

White balance: auto

Electronic shutter range: 1/50 to 1/12,000 seconds

Focus length: 5 to 55mm

Optical focus: 10X

Focus: auto/manual, takes high-performance DSP to realize complete digit and ultra-high speed focus function

Presets: 256

Patrol track: 4 groups, each can record 200 actions

Cruise track: total 30 presets can join cruise, can set the presets residence time

Other scan: supports horizontal scan, deuce area scan and scan random

Rotation range: horizontal: 360° unlimited rotation, vertical: 90° and auto reversal

Rotation speed: horizontal and vertical, minimum 0.01° and maximum 30°/S

Communications: RS-485, PELCO D and PELCO P

OSD: supported

Temperature control: built-in

Power supply: 12V DC/2A

Material: aluminum shell

Working environment range: -20 to 50°C (selected temperature control accessories), <95% RH

Warranty: 2 years

P: (H) 967 * 494p

N: (H) 960 * (V) 582p

Color: 0.01lux

B/W: 0.001lux
